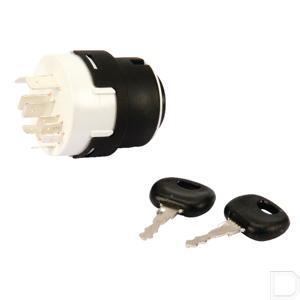

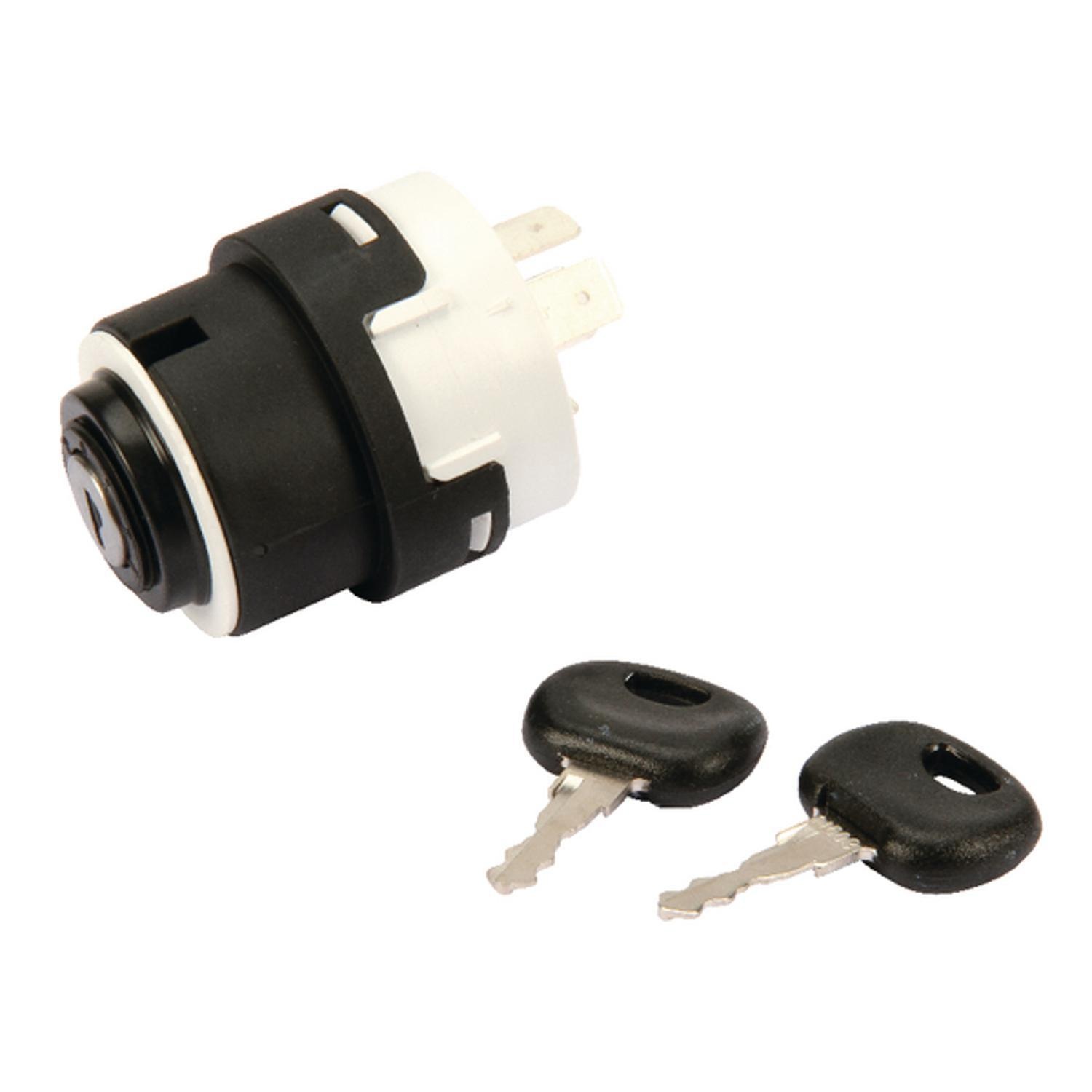

Ignition Switch 12/24V Dust and splash proof

Dust and splash proof ignition switch for e.g. diesel engine
Made of plastic. Including all connection accessories.
Switch combinations: Parking light <- Off -> Ignition -> Glow -> Start

Physical specifications
The glow current can not go directly over the ignition switch
Terminals: 10
Mounting hole size mm: 26.5
Protection degree: IP 63
Further information
Supplied with 2 keys and connection materials.
Plug connection: 6,3×0,8mm / 9,5×1,2mm

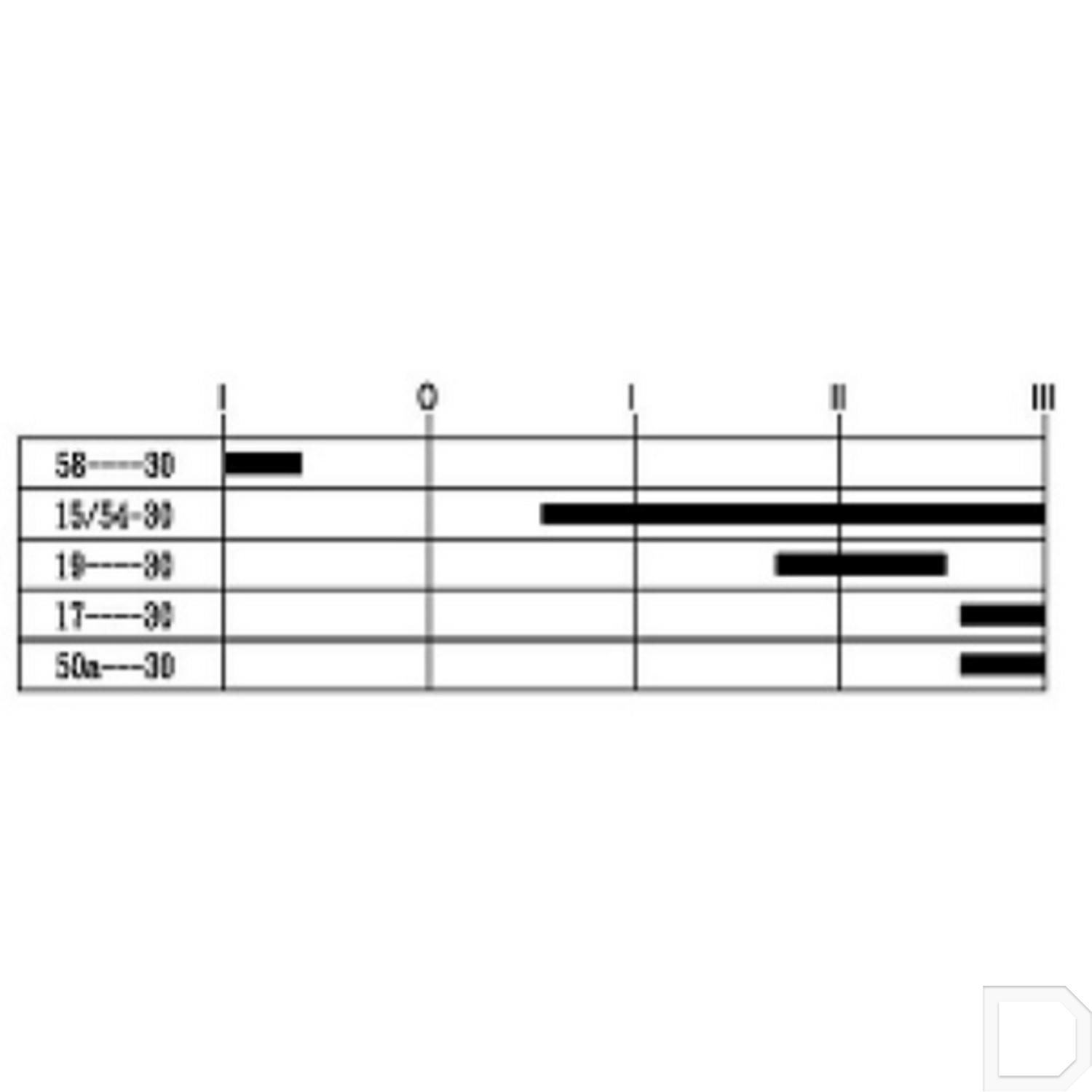

330262 DELPHI

Terminal 30 = Battery

Terminal 15/54 = Ignition +  meters and control lamps

Terminal 17 = Glow plugs/solenoid

Terminal 19 = Glow control, if present

Terminal 50 – Starter solenoid

Terminal 58 = Accessory position
