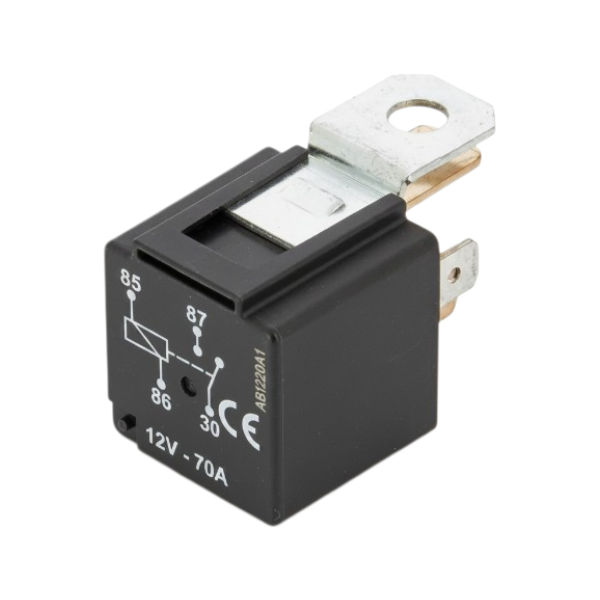

VETUS relay 12V 70A single-pole for Deutz engines – STM9043

The VETUS STM9043 is a compact 12V 70A relay for starting and glow circuits of various VETUS marine engines. The relay switches the higher current to components such as the preheating system, preventing the ignition switch or control circuit from carrying this load directly.

Key features and benefits:

12V design: For 12V electrical engine systems
70A switching capacity: Suitable for high current loads in starting and glow circuits
Single-pole design: Compact mini relay
Function: Can be used as an auxiliary starter relay and glow relay
For VETUS engines: Used, among others, with various Deutz-based VETUS engines
Applications according to the information provided: Including VH4.65, VH4.80, M4.55 and M4.56
Control circuit protection: Prevents high current from flowing directly through the ignition switch or controls
Original VETUS: Part number STM9043
