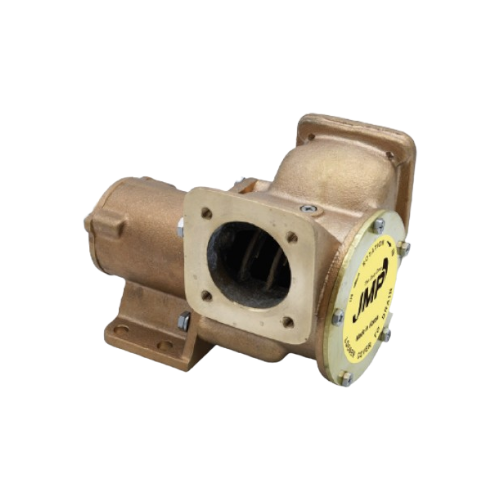

Impeller pump Foot mounted Multipurpose 394 L/min

This multipurpose impeller pump with foot mounting delivers 394l/min. For engines and generators, this impeller pump is the ideal replacement for the original Johnson, Jabsco, Ancor, or Sherwood impeller pump. The high quality and often improved versions of the original offer a reliable solution for replacing your boat pump. The internal parts are not compatible with the original, changes in design have been made and applied to improve quality and performance compared to the original.

Suitable for use as a cooling water pump, deck wash pump, bilge pump or general service pump.
The pump is self-priming due to the rubber impeller.
The stainless steel shafts run in permanently lubricated bearings, making the JMP impeller pump particularly long-lasting.
The pump is suitable for both pleasure and professional shipping. Pump must not run dry or without liquid
Foot mounting with pulley drive
Compact, seawater- and waste water-resistant pump of the well-known heavy-duty quality.

Product information and specifications:

Port type: 2″ flange
Pump housing: Bronze
Uses JMP Impeller p/n: 8301-01(for seawater/rawwater applications)8301-02(for bilge applications)

Flow (1800 rpm): 394 liter/min
Pump size (L x W x H): 275 mm x 152 mm x 149 mm
Weight (approx.): 9.77 kg

Strong bronze pump housing
Shaft of marine quality (3X series non-magnetic)
Mechanical seal with long operational life
High end performances and flexible impeller with long operational life
Designed with easy replacement of spare parts
O-ring seals at end cover (impeller cover) instead of a gasket

Universal model
Direct replacement
Strong bronze pump housing (heavy-duty marine grade casting)
Mechanical seal with long operational life
High end performances and flexible impeller with long operational life
Shaft of marine quality (3X series non-magnetic)
Designed with easy replacement of spare parts
Simple and compact design
