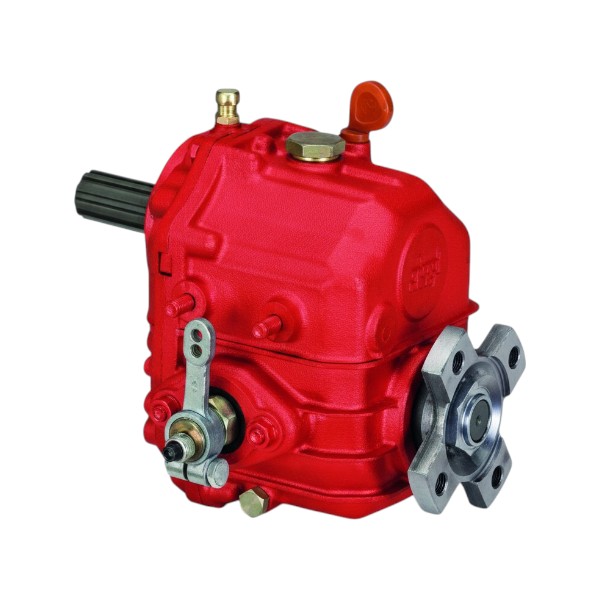

Technodrive mechanical reverse gear TMC40P 2.00:1 long shaft

Description

Technodrive mechanical reverse gear TMC40P 2.00:1 long shaft

The Technodrive TMC40P200L is a mechanically operated reverse gear for inboard drive systems. This version is equipped with a standard long input shaft and has a reduction ratio of 2.00:1 in forward and 2.13:1 in reverse.

The reverse gear is designed for use in combination with light to medium-duty marine diesel engines. The transmission transfers engine power to the propeller shaft and forms an important part of the vessel’s drive line.

The maximum permitted input torque is 90 Nm for pleasure craft applications and 70 Nm for commercial craft applications. The maximum input power is 26 kW for pleasure craft and 21 kW for commercial craft. The reverse gear supports a maximum input speed of 4,500 rpm and has a dry weight of 8.8 kg.

Main features and benefits

• Mechanical operation: For direct shifting between forward, neutral and reverse
• Forward reduction ratio 2.00:1: Suitable for installations where this transmission ratio is required
• Reverse reduction ratio 2.13:1: For correct operation when reversing
• Standard long input shaft: For installation situations where this shaft version is required
• Maximum input speed 4,500 rpm: Suitable for appropriate engine installations within this speed limit
• Oil capacity 0.2 litres: Important for correct lubrication of the transmission
• ATF oil: Prescribed oil type for this mechanical reverse gear
• Dry weight 8.8 kg: Compact version for light to medium-duty marine drive systems

Specifications

• Article number: TMC40P200L
• EAN number: 8719182623328
• Model: Technodrive TMC40P
• Reverse gear type: Mechanically operated
• Forward reduction: R=2.00:1
• Reverse reduction: R=2.13:1
• Input shaft: Standard long version
• Max. input torque pleasure craft: 90 Nm
• Max. input torque commercial craft: 70 Nm
• Max. input power pleasure craft: 26 kW
• Max. input power commercial craft: 21 kW
• Max. input speed: 4,500 rpm
• Dry weight: 8.8 kg
• Oil capacity: 0.2 litres
• Oil type: ATF
