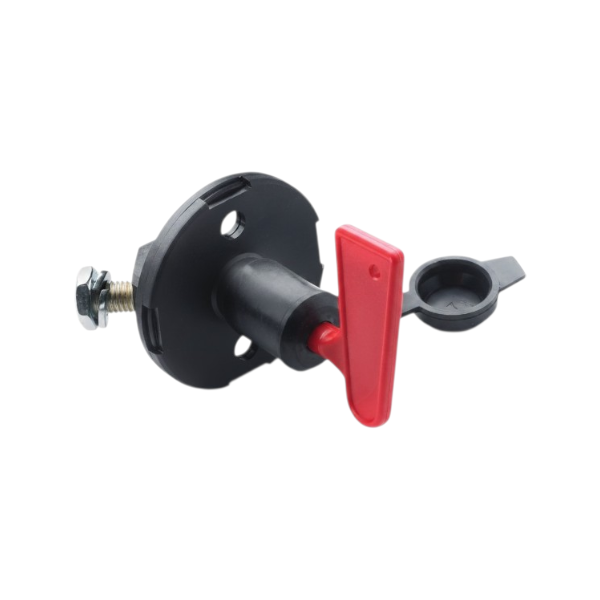

VETUS battery main switch 100A up to 48V – BATSW100

The VETUS BATSW100 is a single-pole battery main switch for completely switching an electrical circuit on board on and off. The switch is suitable for a maximum continuous current of 100A, 500A for 5 seconds and installations up to 48V DC. The red key can be removed in the off position, preventing the electrical circuit from being switched on again unintentionally.

Key features and benefits:

100A continuous: For battery and electrical installations on board
500A for 5 seconds: Withstands short-duration high current peaks
Up to 48V DC: Suitable for various onboard system voltages
Single-pole design: For disconnecting one electrical conductor
On/off operation: For completely isolating the connected electrical circuit
Removable key: Can be removed in the off position
Positive or negative: Suitable for installation in the positive or negative battery cable
M10 connections: For secure connection of battery cables
Original VETUS: Part number BATSW100
