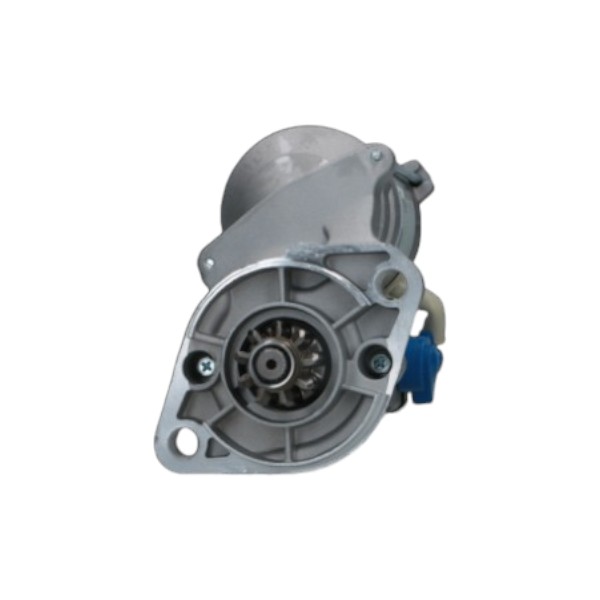

Starter Kubota D1302, D1402, V1502, V2203-M

Electrical specifications
Voltage: 12
kW: 1.4

Physical information
H No. of teeth: 9 (diameter 34.00mm)
P Rotation: Clockwise
N Gear type: Planetary
A Mounting flange: 82.50
I B+: M8
No. of mounting holes: 2 (0)

B Drive distance: 25.00
E Mounting hole 1: 11.15 mm
E Mounting hole 2: 11.15 mm
F Distance rear in mm: 120.00
G Distance front: 36.50
M Mounting bracket: No
O Distance mm: 105.00
R Total length mm: 188.00

Catalogue information
Drive type: Steel
Product info: New
Waterproof: No
Oil sealed: No

Replacing:
028000-4200 Denso
028000-4201 Denso
028000-4990 Denso
028000-4991 Denso
028000-6260 Denso
110244 HC-Cargo
128000-0170 Denso
128000-0171 Denso
128000-0180 Denso
128000-0181 Denso
128000-6640 Denso
15401-63010 Kubota
15401-63011 Kubota
15401-63012 Kubota
15401-63013 Kubota
15461-63010 Kubota
15461-63011 Kubota
15461-63012 Kubota
15461-63015 Kubota
15511-63010 Kubota
15511-63011 Kubota
15521-63010 Kubota
15521-63011 Kubota
155-216-3011 Komatsu
15521-63012 Kubota
15641-63013 Kubota
17298-63010 Kubota
17298-63013 Kubota
17341-63010 Kubota
17341-63011 Kubota
17341-63013 Kubota
17341-63015 Kubota
17381-63012 Kubota
17490-63011 Kubota
228000-1022 Denso
228000-1080 Denso
228000-1081 Denso
228000-1082 Denso
228000-4920 Denso
228000-4921 Denso
228000-4922 Denso
503470 New Holland
6653920 Bobcat
JS734 HC-PARTS
