Sale!

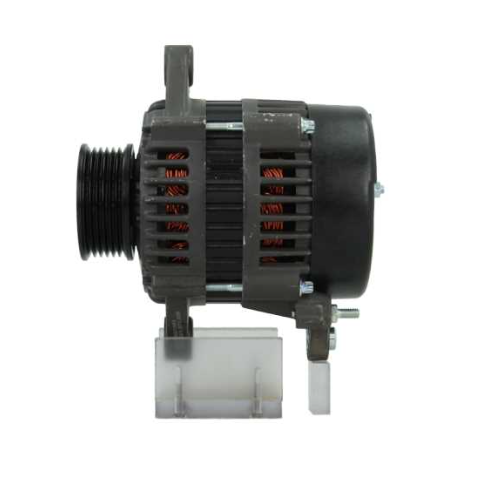

Alternator 12V 70A 862031, 863077T MPI, LFI, Bravo, Alpha, Gen 5.0 5.7 4.3

Original price was: €249,95.Current price is: €179,95.

Includes 21% Tax
Product ID: 24644

✓ 1 pieces shipped the same day, if ordered on workdays before 15:30 (pick-up possible, after ordering)
+ 28 pieces shipped within 24 hours, if ordered on workdays before 15:30 (pick-up possible from the next workday if ordered before 15:30)

Warranty: 2 Years

Electrical specifications
Voltage: 14
Amp: 70
Terminal: W

Catalogue information
Pulley: Multi-V
Regulator type: IR
Vacuum pump: No
Servicing Mercruiser, Marine

Physical information
A Pulley distance: 41.00
B Width holder arm: 16.80
C Mounting bracket dist.: 65.20
D Bracket hole: 8.50
E Pos. belt adj. bracket hole: 60
G Belt adj. bracket hole: M8
H Diameter pulley: 62.80
J Radius: 78.00
J Radius 2: 78.00
K B+ position: M6
K Position/B+ in min.: 15
N Rotation: Clockwise
Q Plug no.1: PL145
Q W plug type: 6.30
R Total length mm: 180.00

19020611, Remy (Delco)
19020612 Remy (Delco)
19020601 Remy (Delco)
19020609 Remy (Delco)
219232 Daewoo
862031 Mercury Marine
862031T Mercury Marine
863077-1 Mercury Marine
863077T Mercury Marine

Passend auf die nächste Modellen
Mercruiser Black Scorpion Ski (Gen +) 5.7L/350CI 8-Cyl
Mercruiser Model 350Mag MPI (Gen +) 5.7L/350CI 8-Cyl
Mercruiser Model 350Mag MPI Alpha & Bravo 5.7L/350CI 8-Cyl
Mercruiser Model 350Mag MPI Hor Alpha & Bravo 5.7L/350CI 8-Cyl
Mercruiser Model 350Mag MPI Horizon 5.7L/350CI 8-Cyl
Mercruiser Model 350Mag MPI Ski (Gen +) 5.7L/350CI 8-Cyl
Mercruiser Model 4.3L(Carb.) Alpha & Bravo 4.3L/262CI 6-Cyl
Mercruiser Model 4.3L(Gen +) 4.3L/262CI 6-Mehr zeigen


Mercruiser Model 4.3L(MFI) Alpha & Bravo 4.3L/262CI 6-Cyl
Mercruiser Model 4.3LEFI 4.3L/262CI 6-Cyl
Mercruiser Model 4.3LEFI (Gen +) TBI 4.3L/262CI 6-Cyl
Mercruiser Model 4.3LMPI 4.3L/262CI 6-Cyl
Mercruiser Model 4.3LH (Gen +) (4-BBL) 4.3L/262CI 6-Cyl
Mercruiser Model 454 Mag Bravo MPI (Gen VI) 7.4L/454CI 8-Cyl
Mercruiser Model 454 Mag MPI (Gen VI) 7.4L/454CI 8-Cyl
Mercruiser Model 454 Mag MPI Horizon 7.4L/454CI 8-Cyl
Mercruiser Model 454Mag MPI Horizon (Gen VI) 7.4L/454CI 8-Cyl
Mercruiser Model 496 Mag 8.1L/496CI 8-Cyl
Mercruiser Model 496 Mag HO 8.1L/496CI 8-Cyl
Mercruiser Model 5.0L (2-BBL) (Gen +) 5L/305CI 8-Cyl
Mercruiser Model 5.0L (Carb.) Alpha & Bravo 5L/305CI 8-Cyl
Mercruiser Model 5.0L EFI (Gen +) 5L/305CI 8-Cyl
Mercruiser Model 5.0L MPI Alpha & Bravo 5L/305CI 8-Cyl
Mercruiser Model 5.7L (2-BBL) (Gen +) 5.7L/350CI 8-Cyl
Mercruiser Model 5.7L (Carb.) Alpha & Bravo 5.7L/350CI 8-Cyl
Mercruiser Model 5.7L EFI (Gen +) 5.7L/350CI 8-Cyl
Mercruiser Model 5.7LEFI (Gen +) MIE 5.7L/350CI 8-Cyl
Mercruiser Model 5.7LMIE 5.7L/350CI 8-Cyl
Mercruiser Model 5.7LSki (CARB) 5.7L/350CI 8-Cyl
Mercruiser Model 5.7LSki (Gen +) 5.7L/350CI 8-Cyl
Mercruiser Model 500EFI 8.2L/502CI 8-Cyl
Mercruiser Model 502 Mag MPI (Gen VI) 8.2L/502CI 8-Cyl
Mercruiser Model 525EFI 8.2L/502CI 8-Cyl
Mercruiser Model 600SCI 8.2L/502CI 8-Cyl
Mercruiser Model 662SCI
Mercruiser Model 7.4LMIE MPI (L29) (Gen VI) 7.4L/454CI 8-Cyl
Mercruiser Model 7.4LX MPI (Gen VI) (L29) 7.4L/454CI 8-Cyl
Mercruiser Model 700SCI
Mercruiser Model 8.1SHO 8.1L/496CI 8-Cyl
Mercruiser Model 8.1SHorizon 8.1L/496CI 8-Cyl
Mercruiser Model 8.2LMIE MPI (LH) (Gen VI) 8.2L/502CI 8-Cyl
Mercruiser Model MX 6.2L MPI 6.2L/377CI 8-Cyl
Mercruiser Model MX 6.2L MPI Horizon 6.2L/377CI 8-Cyl
Mercruiser Model MXBS MPI Ski 6.2L/377CI 8-Cyl
Mercruiser Model MXMPI 6.2L/377CI 8-Cyl
Mercruiser Model MXMPI Horizon 6.2L/377CI 8-

SKU: 113685 Categories: , , , Tag:

Product ID: 24644

Description

Additional information

Applicable to

mercruiser
Mounting ear width

16.80 mm
Voltage DC

12v
Ampère

70 A
Suspension distance

65.20 mm
Tachometer connection

W
