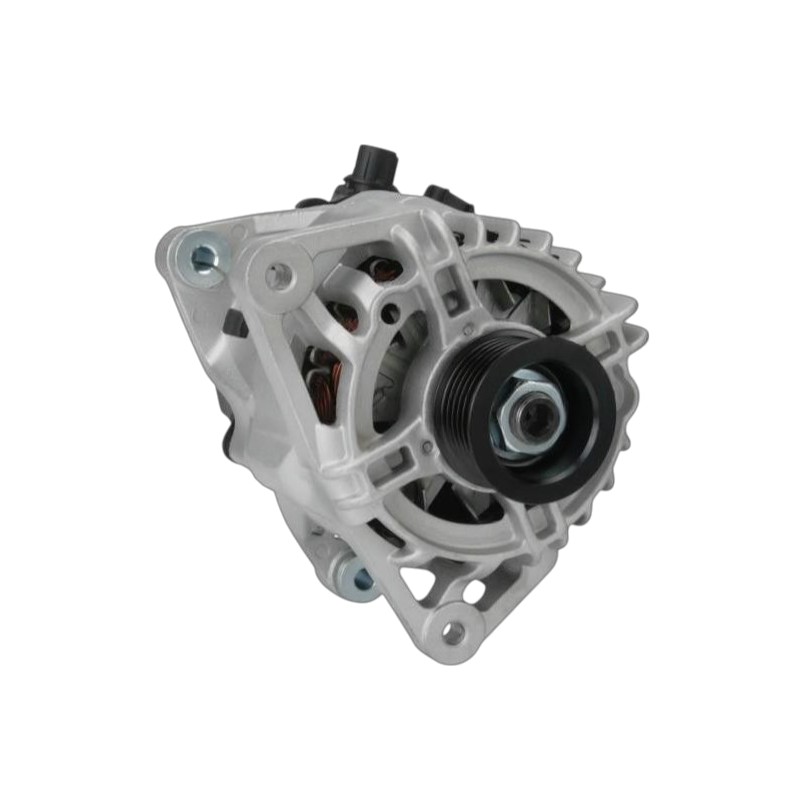

Alternator Ford Marine, 12V 80A

Electrical specifications
Voltage: 14
Amp: 80
Physical specifications
A Pulley distance: 34.00
B Width holder arm: 13.80
C Mounting bracket dist.: 62.40
D Bracket hole: 8.10
E Pos. belt adj. bracket hole: 50
G Belt adj. bracket hole: 8.10
H Diameter pulley: 48.50
I Grooves/pulley: 6
J Radius: 81.00
J Radius: 85.00
K B+ position: M6
O Regulator plug: PL57
Further information
Blower: Internal fan
Pulley: Multi-V

[expand title=”Replacing” rel=”fiction”] Replacing
102211-8030 DENSO
102211-8031 DENSO
1097304 FORD
1301496 FORD
98AB10300DB FORD
98ab10300dc FORD
98ab10300dd FORD
98ab10300de FORD
98ab10300df FORD
98AB10300DG FORD
98AB10300DH FORD
98AB10300DJ FORD
63321678 MAGNETI MARELLI
63341678 MAGNETI MARELLI
63377409 MAGNETI MARELLI
EGL1304 MOTORCRAFT
[/expand]

[expand title=”Servicing” rel=”fiction”] Lister [/expand]
