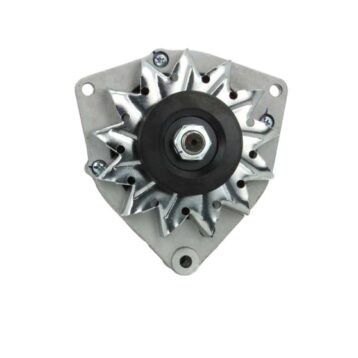

Alternator Mercury Mercruiser, 12V 90A

Specifications

Voltage: 14
Amp: 90
Insulation status: Double, earth-free
Terminal: W
Blower: Single fan
Pulley: V-Groove

A Pulley distance: 44.50
B Width holder arm: 13.50
C Mounting bracket dist.: 82.20
D Bracket hole: 8.10
E Pos. belt adj. bracket hole 1: 55
E Pos. belt adj. bracket hole 2: 60
E Pos. belt adj. bracket hole 3: 5
G Belt. adj. bracket hole: 8.20
H Diameter pulley: 71.50
I Grooves/pulley: 1
J Radius 1: 90.00
J Radius 2: 86.00
J Radius 3: 86.00
J Radius 4: 86.00
K B+ position: M6
O Regulator plug: PL_NA

Remark: For right and left mounting

[expand title=”Replacing” rel=”fiction”] Replacing
NAB9000M LUCAS
[/expand]

[expand title=”Servicing ” rel=”fiction”] Servicing:

Various, Marine [/expand]
