Additional information
Applicable to | Yanmar |
---|---|
Shaft diameter | 17.00 mm |
Voltage DC | 12v |
Engine type | 2QM20 |
Ampère | 70 A |
Mounting ear width | 11.50 mm |
Suspension distance | 82.50 mm |
Tachometer connection | W |
€249,95
Includes 21% Tax
Product ID: 25091
✓ 1 pieces shipped the same day, if ordered on workdays before 15:30 (pick-up possible, after ordering)
+ 2 pieces shipped within 24 hours, if ordered on workdays before 15:30 (pick-up possible from the next workday if ordered before 15:30)
Electrical specifications
Voltage: 14
Amp: 70
Insulation status: Double, earth-free
Terminal: W
Physical specifications
A Pulley distance: 45.00
B Width holder arm: 11.50
C Mounting bracket dist.: 82.50
D Bracket hole: 8.20
E Pos. belt adj. bracket hole: 50
G Belt adj. bracket hole: M8
H Diameter pulley: 81.50
I Grooves/pulley: 1
J Radius: 86.00
J Radius: 86.00
K B+ position: M6
O Regulator plug: PL22
Further information
Blower: Single fan
Pulley: V-Groove
Product ID: 25091
Applicable to | Yanmar |
---|---|
Shaft diameter | 17.00 mm |
Voltage DC | 12v |
Engine type | 2QM20 |
Ampère | 70 A |
Mounting ear width | 11.50 mm |
Suspension distance | 82.50 mm |
Tachometer connection | W |

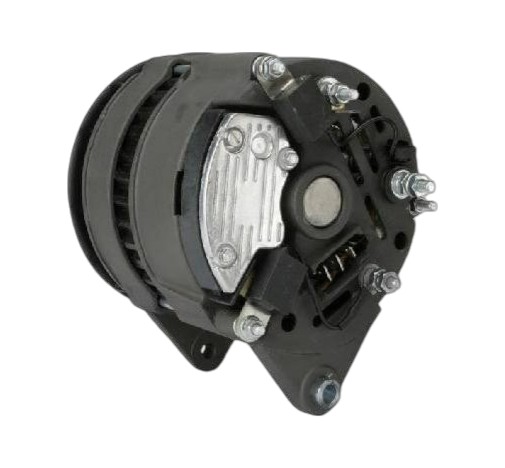

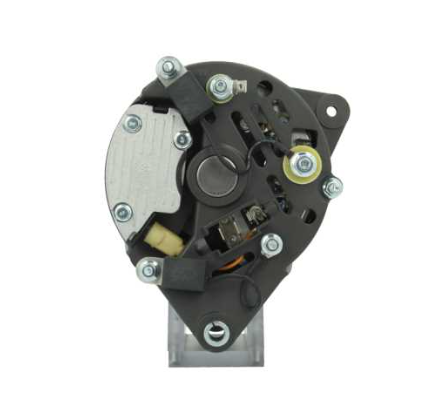

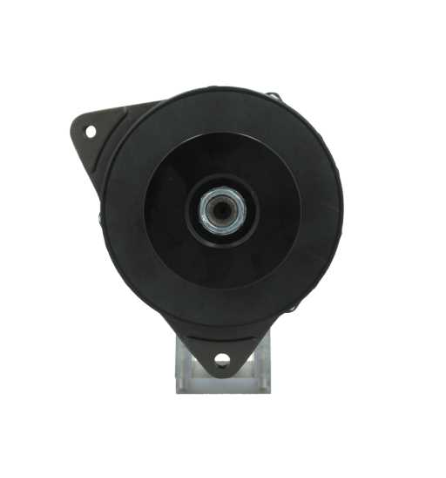

2 reviews for Alternator Perkins 4108, 6354, Yanmar 2QM20 Parama 50 12V, 70A
