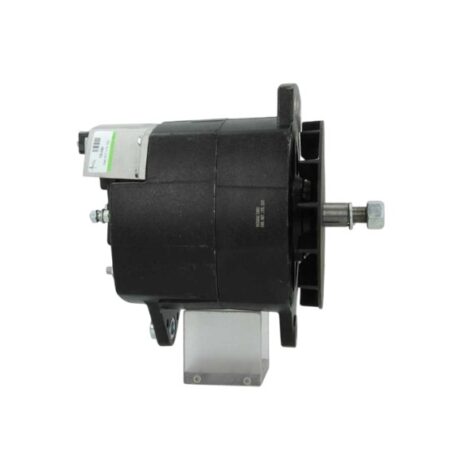

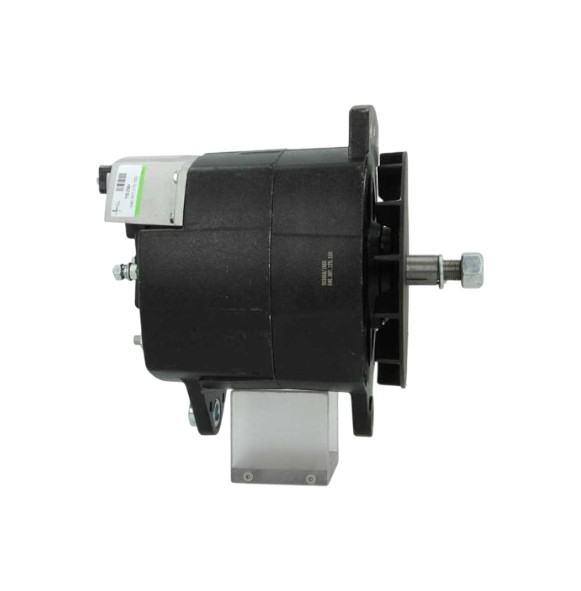

Alternator Volvo Penta TMD100, 24V 175A

579,95

Includes 21% Tax
Product ID: 25193

✓ 7 pieces shipped within 24 hours, if ordered on workdays before 15:30 (pick-up possible from the next workday if ordered before 15:30)

Warranty: 2 Years

Specifications

Voltage: 28
Amp: 175
Terminal: W
Insulation status: Double, earth-free
Blower: Single fan
Pulley: Without
Volvo Penta Lichtmaschine

B Width holder arm: 14.75
C Mounting bracket dist.: 101.50
D Bracket hole: 13.00
E Pos. belt adj. bracket hole 1: 55
E Pos. belt adj. bracket hole 2: 60
E Pos. belt adj. bracket hole 3: 5
G Belt. adj. bracket hole: M12
J Radius 1: 108.00
J Radius 2: 107.00
J Radius 3: 100.00
J Radius 4: 104.00
K B+ position: M8
O Regulator plug: PL_NA
Further information
Blower: Single fan
Pulley: Without

For type TMD100

Replacing

Replacing
859477B BUTEC
859477PB BUTEC
8sc3005y MOTOROLA
110-184 MOTOROLA USA
110-258 MOTOROLA USA
110-258a MOTOROLA USA
110-569 MOTOROLA USA
8sc3005v MOTOROLA USA
8sc3009z MOTOROLA USA
8sc3009za MOTOROLA USA
8sc3014u MOTOROLA USA
8sc3029z MOTOROLA USA
8SC3157V MOTOROLA USA

Servicing Volvo Penta
TMD100
download (2)

Product ID: 25193

Additional information

Applicable to

Volvo Penta

Ampère

175 A

Voltage DC

24v

Tachometer connection

W

Mounting ear width

14.75 mm

Suspension distance

101.50 mm
