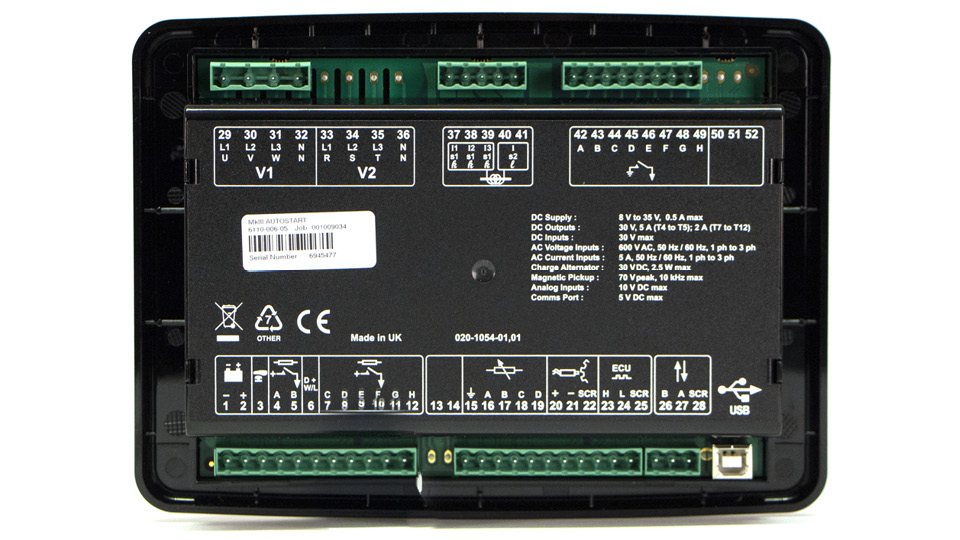

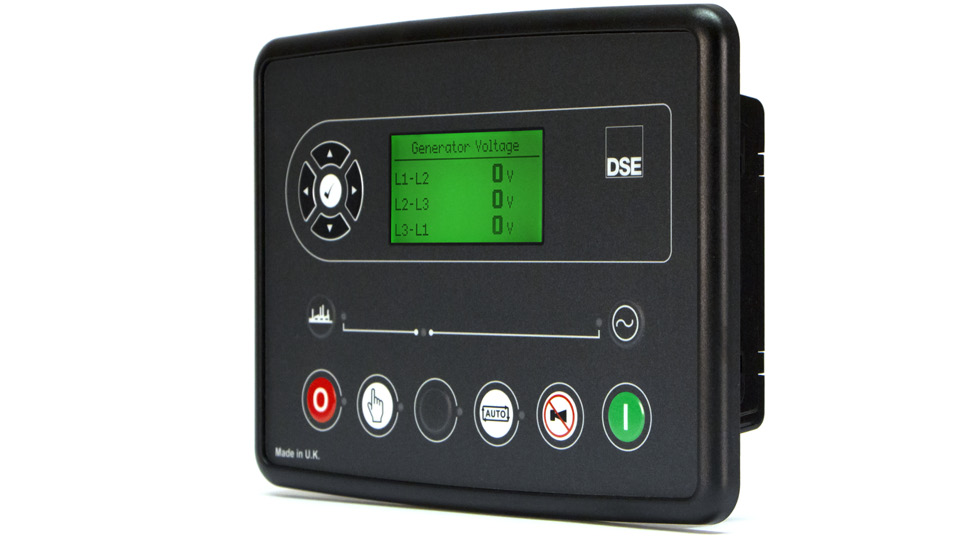

Automatic start module DSE6110 MKIII for generators or engines.

The DSE 6110 MKIII is an Auto Start Control Module suitable for a wide range of single, diesel, or gas generator applications.

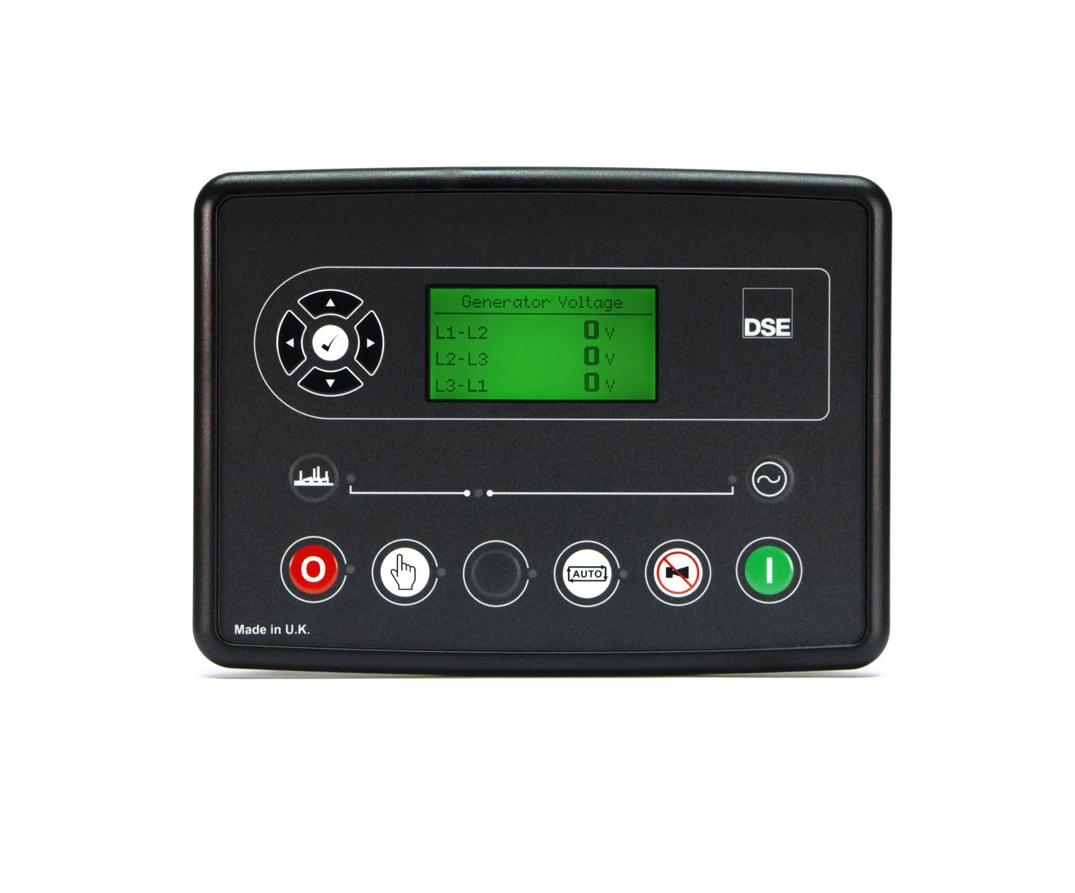

The module monitors a variety of engine parameters and provides warnings, shutdowns, and engine status information on the illuminated LCD screen.

The module is compatible with both electronic and non-electronic engines and features a wide range of flexible inputs and outputs, along with extensive engine protection, allowing the system to be easily adapted to the most demanding industrial requirements.

• DC power: continuous voltage 8–35 V, 5 V maximum for 1 minute
• Cranking dropouts: 0 V survival 100 ms provided power before dropout ≥10 V and recovery to ≥5 V, no internal batteries
• LEDs and backlighting remain inactive during cranking
• Maximum operating current: 260 mA at 12 V, 150 mA at 24 V
• Maximum standby current: 145 mA at 12 V, 85 mA at 24 V
• Charging failure / winding range: 0–35 V
• Generator & utility power: 15–415 V AC (phase–neutral), 26–719 V AC (phase–phase)
• Frequency range generator/net: 3.5–75 Hz
• Magnetic pickup voltage range: ±0.5–70 V
• Magnetic pickup frequency range: up to 10,000 Hz
• Digital inputs A–H: negative switching
• Analog inputs A & D: negative switching digital input, 0–10 V sensor, 4–20 mA sensor, resistance sensor
• Analog inputs B & C: negative switching digital input, resistance sensor
• Outputs A & B (fuel & start): 10 A DC at supply voltage
• Extra outputs C–H: 2 A DC at supply voltage

Can-bus compatible
