CCGX WiFi module (ASUS USB-N14) *If 0, order BPP900200300*

BPP900200300 Victron

We recommend this CCGX long range antenna for connecting the Color Control GX panel (BPP000300100R) to a WiFi network.

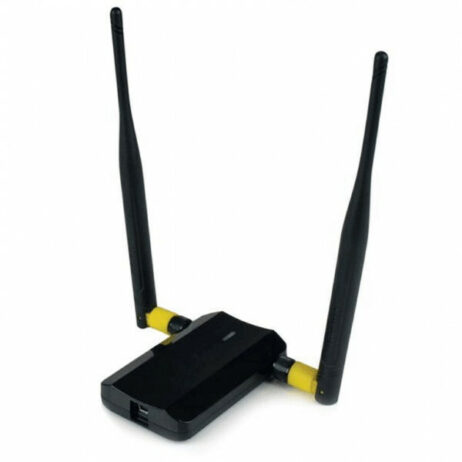

With this dual-band wireless USB network adapter, the VICTRON Color Control GX can connect to a WiFi network on the frequencies 2.4 GHz or 5 GHz. The adapter can be used to connect to type a, b, g or n wireless networks and features two sensitive 5dBi antennas and electrical amplifiers for optimum reception with transfer rates of up to 300 Mbit/s over distances up to 3 times further than with a standard WiFi adapter.
This versatile dual-band network adapter features 2T2R (2 transmitters, 2 receivers), multiple input / multiple output (MIMO) and can connect to older wireless access points (which may only operate at 2.4 GHz frequency) and with modern WAPs that support the less congested 5 GHz frequency band.

Applications for connecting the VICTRON Color Control GX with
> a (nearby) wireless network.
> a 5 GHz WiFi network, where there is no interference from common wireless devices.
> WiFi networks in areas with many obstacles or against the maximum range of the WiFi access point.
> a network in which no cables can be used.

This product consists of:
USB Wi-Fi Adapter | Mini USB Y Adapter | Dual Band Antenna (2x) | Monitor clip | CD Rom – Drivers | Manual
