Electric Boating Kit 10kW DIY – for boats up to 5t / 10m, replaces 30HP – 5-year warranty

GM10 Electric Motor – 10 kW Electric Propulsion for Boats up to 10 Meters

Convert Your Boat to Electric Propulsion

With the GM5 Electric Motor, you can switch to silent, sustainable, and powerful boating. This complete electric propulsion kit is ideal for converting your boat to electric or replacing a diesel engine.
Experience instant torque, quick throttle response, and absolute silence – a true “Tesla experience on the water.”

The GM5 combines power, efficiency, and reliability in one compact system. Perfect for sloops and pleasure boats up to 1.5 tons and 7 meters in length.

Main Benefits

• High torque (40 Nm) and direct throttle response
• Completely silent – no vibrations or exhaust gases
• Plug & play installation with motor frame and cable set
• Includes lithium battery and charger
• Low maintenance and long lifespan
• Compact design, only 40 kg
• Suitable for both recreational and professional use
• Available directly from stock in the Netherlands!

Battery and Runtime

The system comes with 2 × lithium batteries 100 Ah / 51.2 V (5.1 kWh).
Can be expanded with additional batteries for longer runtime.

Runtime guideline:
10 kWh battery = approx. 1.5 hours at full power. At cruising speed or partial load, this can increase to 2–4 hours depending on the boat and usage profile.

Propeller Recommendation

Recommended: 3-blade: 15’’ x 9’’ (speed 11–13 km/h)
This is a guideline – the final propeller choice depends on the type of boat, motor power, and usage. In many cases, the existing propeller can be retained after inspection or maintenance.
Feel free to contact us for tailored advice.

Installation and Operation

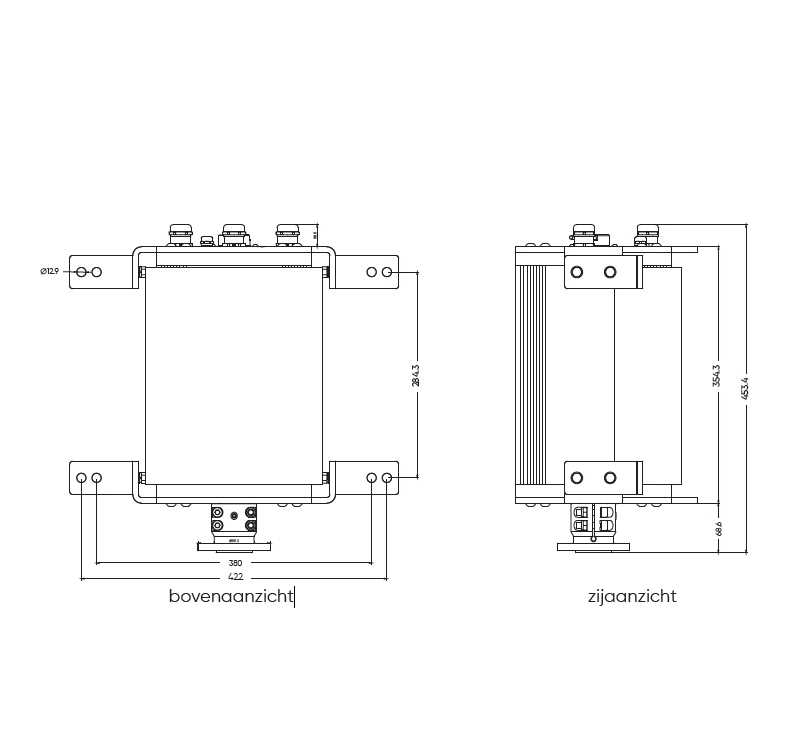

The GM10 is supplied with engine mounts for easy installation.
Expand the system with additional accessories for full control, such as displays, throttles, and Bluetooth monitoring.

Do you have a Python Drive installed?
We supply specific hubs that allow the electric motor to connect directly to the Python Drive – no extra adapters or welding required.
When ordering, simply specify the gearbox type and Python Drive model so we can include the correct hub.

Our specialists are happy to advise which Python Drive model or motor hub best fits your installation.
Check out the category with electric motor hubs for Python Drive.

Package Contents

1 × GM 7.55 kW AC v02.2 motor system
Permanent magnet motor + controller (air-cooled) + wiring harness + throttle + ignition switch + stainless steel motor frame.

2 × Lithium Battery 100 Ah / 51.2 V (LiFePO₄, 5.1 kWh)
High-quality Green Marine battery with integrated BMS protection.

1 × Battery Charger 35 A (16 s LiFePO₄)
Fast and safe charging, compatible with shore power.

1 × Mounting Kit 250 A
Includes busbars, main switch, and fuses.

1 × Shore Power Set Stainless Steel 16 A – 15 m cable
Stainless steel inlet, residual current device, and socket.

1 × Victron BMV-712 Smart Battery Monitor (black)
Bluetooth monitoring via app and precise status display.

Silent Motor Set Offer

Take advantage of our Silent Motor Set Offer – a complete electric propulsion solution including motor, lithium battery, charger, and installation kit.
A smart and sustainable solution for those who want to convert their boat to electric propulsion themselves.
