Sale!

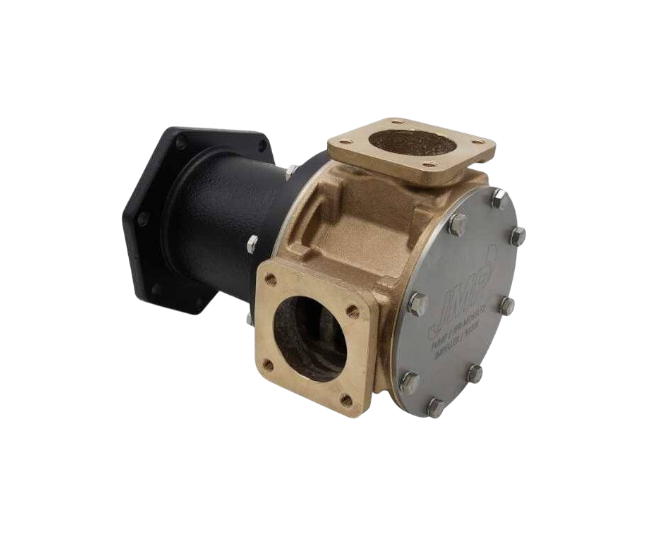

Impeller pump Marine Mitsubishi, Volvo Penta D25, D30 Cooling water pump

Original price was: €1.779,95.Current price is: €1.479,95.

Includes 21% Tax
Product ID: 60287

✓ 3 pieces shipped the same day, if ordered on working days before 15:30 (pick-up not possible)

Warranty: 2 Years

Please note: This JPR-MD65LF2 replaces JPR-ME5000

Impeller pump Marine Mitsubishi Volvo Penta D25 D30 cooling water pump; Ideal as replacement for Volvo Penta and Mitsubishi Marine engines

Please note: If you have a tubular cooling system, use this JPR-MD65LF2 impeller pump.

This cooling water pump for the Volvo Penta and Mitsubishi marine engines is ideal for replacing the original Johnson, Jabsco, Ancor, or Sherwood impeller pump.
The high quality and often improved versions of the original offer a reliable solution for replacing your boat pump. All parts such as the impeller and internal wear parts are the same as the original version for maintenance or overhaul, so you can still go anywhere.

This cooling water pump fits on the following Volvo Penta marine engines: D25A-MT, D25A-MS, D30A-MT, D30A-MS
Replacing:: Volvo Penta part. 3835188
This cooling water pump fits on the following Mitsubishi marine engines, among others : S6A, S6B, S6R, S6R2
Replacing:: Mitsubishi part. 37553-18102, 37553-28100, 37555-101N0

Product information and specifications:
Uses JMP Impeller p/n: 9100-01K
Built-in comb
Port size: 2 1/2″
Port type: Flange
Pump size (LxWxH): 295 mm x 213 mm x 186 mm
Pump weight: 22.05 kg

Drive sprocket options for these engine models: (separately available)
S6A3 = mounting flange: GEA0010 (Mitsubishi 42763-00200)
S6B5 = mounting flange: GEA0026 (Mitsubishi 34A53-01200)
S6R, S6R2 = mounting flange: GEA0019 (Mitsubishi F2330-22005)

Product features:

Built-in cam
Direct replacement
Thick-walled cast pump housing made of seawater-resistant bronze
Self-lubricating flexible impeller with long service life
Shaft of high-quality stainless steel (3X series non-magnetic)
Designed so that spare parts are easy to replace.
High volume yield and flow capacity

For questions about this product, its parts or its type or application, please contact us.
There may be several types or numbers that are also comparable to this type of cooling pump.

Product ID: 60287

Description

Impeller pump Marine Mitsubishi Volvo Penta D25 D30; Ideal as replacement for your Volvo Penta and Mitsubishi Marine cooling water pump

Product information and specifications:
Uses JMP Impeller p/n: 9100-01K
Cam type: Built-in cam
Port size: 2 1/2″
Port type: Flange connection
Pump size (LxWxH): 295 mm x 213 mm x 186 mm
Pump weight (approx.): 22.05 kg
Replacing original Mitsubishi pump p/n(s): 37553-28100, 37555-101N0, 37553-10100
Replacing JMP Marine Pump p/n(s): JPR-MD65LF
Engine model(s): S6B, S6A, S6R, S6R2
Applied to the following Mitsubishi engines, among others: S6B-MTK2, S6B3-MTK, S6B3-PTK, S6A3-MTK, S6A3-PTK, S6A3-MTK2, S6A3-PTK2, S6H-MTKL, S6R2-MTK, S6R2-PTK, S6R2-MTK2, S6R2-PTK2
Small service kit: JSM002101 (*Sold separately)

Drive sprocket options for engine model: (*separately available)
S6A3 = mounting flange GEA0010 (Mitsubishi 42763-00200)
S6B5 = mounting flange GEA0026 (Mitsubishi 34A53-01200)
S6R, S6R2 = mounting flange GEA0019 (Mitsubishi F2330-22005)
