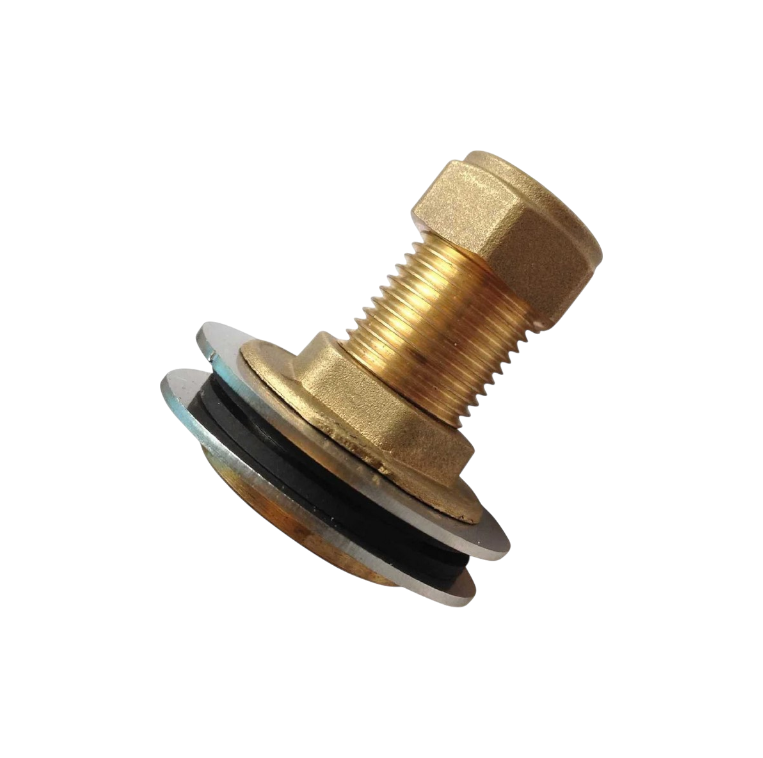

Removable tank lead-through with Ø 16 mm. passage

Tank lead-through with a ½” BSB thread for retrofitting in existing or fixed tanks.

Passage has Ø 16mm.

Drill a 36 mm hole in the tank and then the passage can be placed through the hole from the outside.

(3) Rubber gasket
(5) Ring that fills the Ø36mm opening
(6) Gasket
(7) SS ring
(8) Nut
(9) Cover cap (1/2” BSP)

The cover cap can be replaced by, for example, a ball valve, tank vent, hose/pipe or a hose connection.

Assembly is done entirely from the outside.
