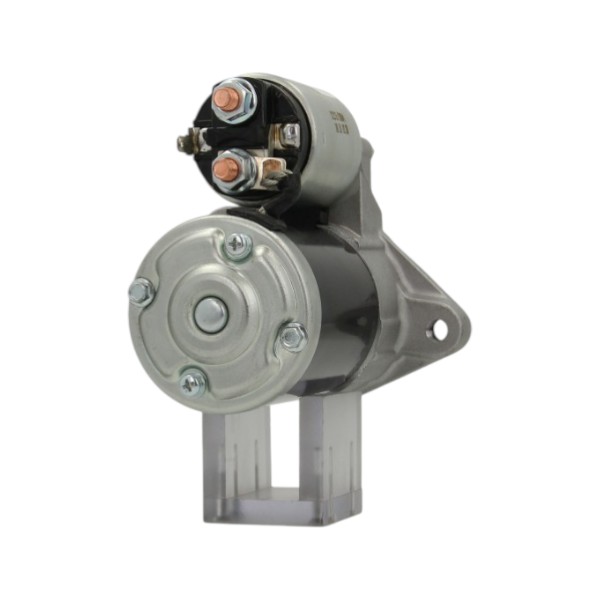

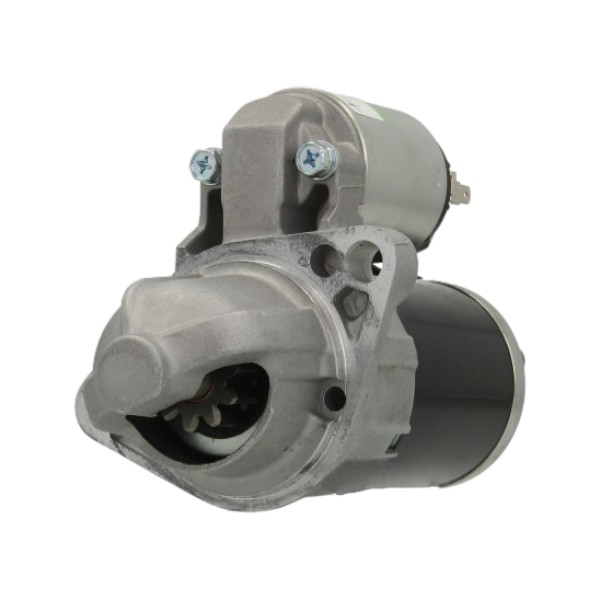

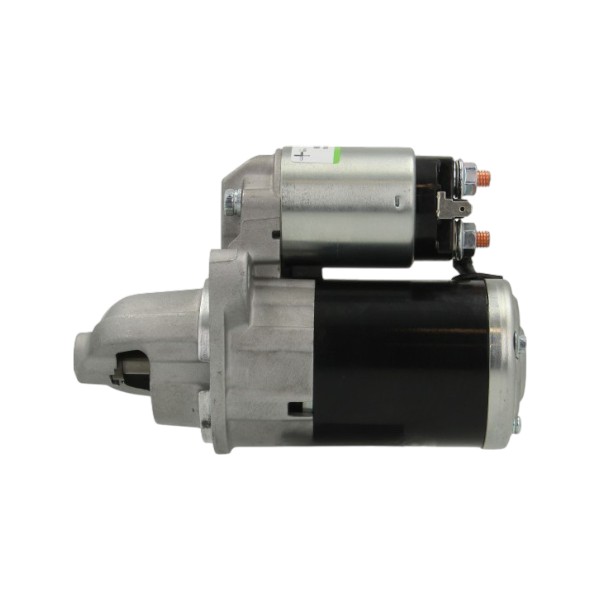

Starter motor Suzuki 1.2 kW – 12V, 10 teeth

Description

Specifications:
Voltage: 12V
Power: 1.2 kW
Flange: 70.00 mm
Teeth: 10
Drive gear base position: 28.00 mm
B+: M8
Number of mounting holes: 2
Rotation: CW
Position (°): +60

Applicable to:
SUZUKI SX4 (07-2014 – 05-2022)
SUZUKI SX4 (07-2016 – 05-2022)
SUZUKI SX4 S-Cross (07-2013 – 05-2022)
SUZUKI SX4 S-Cross (07-2016 – 05-2022)
SUZUKI Splash (08-2010 – 11-2014)
SUZUKI Splash (05-2011 – 11-2014)
SUZUKI Swift (09-2010 – Present)
SUZUKI Vitara (01-2015 – Present)
SUZUKI Vitara (08-2015 – Present)
SUZUKI Vitara (04-2015 – Present)
SUZUKI Vitara (09-2018 – Present)

Cross-reference:
116270 HC-Cargo
180520102 PSH
30520N WAI
30520OS WAI
3110051K10 Suzuki
3110061MA0 Isuzu
3110073K10 Suzuki
63721574010 Magneti Marelli
95507894 General Motors
95520338 General Motors
AZS269 ATK
CS1574 HC-Parts
DRS0644 Delco Remy
DRS1052 Delco Remy
F032116270 HC-Cargo
LRS02561 Lucas
LRS2561 Lucas
M000T38071 Mitsubishi
M000T38071ZE Mitsubishi
M000T38072 Mitsubishi
M000T38072AM Mitsubishi
M000TD0871 Mitsubishi
M000TD0871ZE Mitsubishi
M000TF0071 Mitsubishi
M000TF0072 Mitsubishi
M000TF0073 Mitsubishi
M0T38071 Mitsubishi
M0T38071ZE Mitsubishi
M0T38072 Mitsubishi
M0T38072AM Mitsubishi
M0TD0871 Mitsubishi
M0TD0871ZE Mitsubishi
M0TF0071 Mitsubishi
M0TF0072 Mitsubishi
M0TF0073 Mitsubishi
MITM0T38071 Wood Auto
STR71361 Wood Auto
WOOSTR71361 Wood Auto
