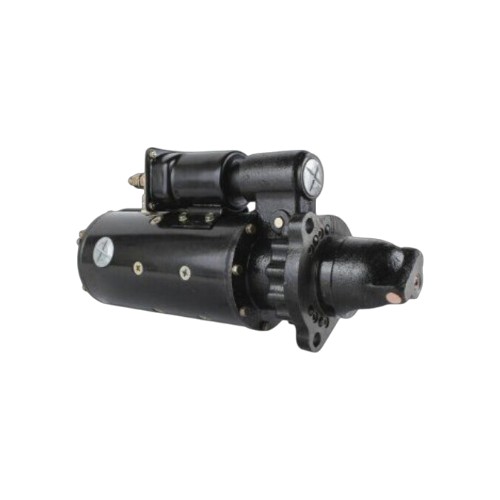

Starter 24V 9.0kW 50MT Cummins KTA19, Caterpillar 3408

This starter for the Cummins 24V 9.0kW is the perfect replacement for the MT50 series applied to the KTA and KTA19 engines.

Electrical specifications
Voltage: 24
kW: 7.5Kw

Earth free/double insulated: Yes
Physical specifications
A Mounting flange: 92.00
E Mounting holes: 16.50
E Mounting hole 2: 16.50
E Mounting hole 3: 16.50
B Drive distance: 47.00
F Distance rear in mm: 374.00
G Distance front: 101.50
H No. of teeth: 11
I B+: 1/2″ UNC
S B-: 1/2″ UNC
N Gear type: Conventional
O Distance mm: 127.00
O Distance 2: 127.00
O Distance 3: 127.00
P Rotation: Clockwise
R Total length mm: 522.00
Further information
No. of mounting holes: 3 (0)
Drive type: Steel
Remarks Replacing: 50MT.
Oil sealed: Yes
Waterproof: No

This starter can replace the following original product numbers:

LESTER 6956
CATERPILLAR 0R4998, 10R0936, 1249780, 124-9780, 4Q5454, OR4998
CUMMINS 3084198, 3603868PL, 3628757, 3628997
DELCO 10461188, 10479083, 10479087
PRELUB 100138, 100203, 100208, 100234, 100236, 100237, 100246, 100273, 100280, 100282, 100287, 100372, 100769
WILSON 91-35-1016

Case 20-1297T91, 462588C91, 489717C91, 739911C9, 739912C91, Caterpillar 0R4272, 0R5211, 0R5213, 10R9815, 237-1962, 2371962, 272-7123, 338-3454, 3L8205, 3T2780, 3T2785, 3T2787, 3T2876, 3T3778, 3T3876, 3T8947, 3T8949, 3T8954, 3T8961, 3T8963, 3T8967, 4M4615, 4N0959, 4N3343, 4N3349, 5L3648, 5L4405, 5L5353, 5L5354, 5L648, 5L8205, 5LG48, 5N2685, 6N9667, 6N9677, 6T0640, 6T0647, 6V0511, 6V0590, 6V0885, 6V0890, 8L8204, 8L8205, 9L6464, 9L6474, 9L6484, Cummins 173184, 3000576, 3004699, 3004700, 3010125, 3021038, 3063771, 3603868RX, 3603887RX, 3603888RX, 3632274, 3632274RX, 3636820, 3636821, 3651892, 4081236, Delco 10461057, 10461125, 10461381, 10461739, 10478863, 10478865, 10478866, 10478878, 10478879, 10478883, 10478887, 10478888, 10478907, 10478908, 10478909, 10478911, 10478912, 10479124, 10479125, 10479126, 10479339, 10479343, 1109222, 1109224, 1109275, 1109277, 1109278, 1109279, 1109285, 1109286, 1109287, 1109288, 1109289, 1109290, 1109291, 1109292, 1109293, 1109296, 1109298, 1109493, 1109494, 1109553, 1109630, 1109631, 1109636, 1109638, 1109642, 1109643, 1109646, 1109647, 1109649, 1109755, 1109759, 1109768, 1109771, 1109772, 1109774, 1109775, 1109776, 1109777, 1109778, 1109780, 1109782, 1109787, 1109791, 1109797, 1109798, 1109837, 1109838, 1109839, 1109840, 1109841, 1109842, 1109843, 1109844, 1109845, 1109846, 1109961, 1109963, 1109965, 1109968, 1109970, 1109971, 1109972, 1109973, 1109977, 1109978, 1109979, 1109980, 1109984, 1109985, 1109986, 1109987, 1990229, 1990231, 1990235, 1990237, 1990239, 1990244, 1990246, 1990248, 1990249, 1990250, 1990251, 1990253, 1990254, 1990255, 1990259, 1990260, 1990262, 1990263, 1990264, 1990267, 1990268, 1990269, 1990270, 1990271, 1990273, 1990274, 1990275, 1990276, 1990278, 1990284, 1993825, 1993840, 1993841, 1993852, 8200207, 8200208, 8200456, 8200592, 8201091, 8201153, Detroit Diesel R0461125, Euclid E821132X, Fiat Allis 70620350, 70675686, 70697811, 73114229, 73130196, 73130197, 73130198, 73130627, Ford D8HZ-11002-C, E2HT-11001-DA, E3HZ-11002-A, E3HZ-11002-B, E3HZ-11002-C, IHC, Navistar 462588C91, 489717C91, 729912C91, 739911C91, John Deere RE10464, Leece Neville M125701, Mack Truck 2132X10461057, Prestolite MS7-300A, MS7-411, Versatile V102746, V61094, Western Star 820013408, 820013409, White V1114238, V1114938
Lester Nos:
4600, 4927, 4930, 4937, 6672, 6764

1420002 BOSCH
1420006 BOSCH
1420008 BOSCH
1420010 BOSCH
1420011 BOSCH
0r5213 CATERPILLAR
10461057 REMY (DELCO)
10461125 REMY (DELCO)
10478809 REMY (DELCO)
10478855 REMY (DELCO)
10478879 REMY (DELCO)
10478880 REMY (DELCO)
10478884 REMY (DELCO)
10478911 REMY (DELCO)
10478912 REMY (DELCO)
10479339 REMY (DELCO)
10479340 REMY (DELCO)
10479343 REMY (DELCO)
1109222 REMY (DELCO)
1109285 REMY (DELCO)
1109286 REMY (DELCO)
1109287 REMY (DELCO)
1109288 REMY (DELCO)
1109289 REMY (DELCO)
1109290 REMY (DELCO)
1109291 REMY (DELCO)
1109292 REMY (DELCO)
1109293 REMY (DELCO)
1109296 REMY (DELCO)
1109385 REMY (DELCO)
1109494 REMY (DELCO)
1109553 REMY (DELCO)
1109631 REMY (DELCO)
1109636 REMY (DELCO)
1109638 REMY (DELCO)
1109642 REMY (DELCO)
1109643 REMY (DELCO)
1109647 REMY (DELCO)
1109649 REMY (DELCO)
1109661 REMY (DELCO)
1109755 REMY (DELCO)
1109759 REMY (DELCO)
1109768 REMY (DELCO)
1109771 REMY (DELCO)
1109772 REMY (DELCO)
1109773 REMY (DELCO)
1109774 REMY (DELCO)
1109775 REMY (DELCO)
1109776 REMY (DELCO)
1109777 REMY (DELCO)
1109778 REMY (DELCO)
1109780 REMY (DELCO)
1109782 REMY (DELCO)
1109787 REMY (DELCO)
1109788 REMY (DELCO)
1109789 REMY (DELCO)
1109791 REMY (DELCO)
1109798 REMY (DELCO)
1109833 REMY (DELCO)
1109834 REMY (DELCO)
1109836 REMY (DELCO)
1109838 REMY (DELCO)
1109839 REMY (DELCO)
1109840 REMY (DELCO)
1109841 REMY (DELCO)
1109842 REMY (DELCO)
1109845 REMY (DELCO)
1109846 REMY (DELCO)
1109960 REMY (DELCO)
1109961 REMY (DELCO)
1109965 REMY (DELCO)
1109971 REMY (DELCO)
1109972 REMY (DELCO)
1109973 REMY (DELCO)
1109977 REMY (DELCO)
1109978 REMY (DELCO)
1109979 REMY (DELCO)
1109986 REMY (DELCO)
1109987 REMY (DELCO)
1114819 REMY (DELCO)
1990229 REMY (DELCO)
1990231 REMY (DELCO)
1990235 REMY (DELCO)
1990237 REMY (DELCO)
1990239 REMY (DELCO)
1990248 REMY (DELCO)
1990249 REMY (DELCO)
1990250 REMY (DELCO)
1990251 REMY (DELCO)
1990259 REMY (DELCO)
1990260 REMY (DELCO)
1990262 REMY (DELCO)
1990263 REMY (DELCO)
1990264 REMY (DELCO)
1990266 REMY (DELCO)
1990268 REMY (DELCO)
1990269 REMY (DELCO)
1990270 REMY (DELCO)
1990271 REMY (DELCO)
1990272 REMY (DELCO)
1990273 REMY (DELCO)
1990274 REMY (DELCO)
1990276 REMY (DELCO)
1990284 REMY (DELCO)
1993840 REMY (DELCO)
2311040 CAV
3010125rx CUMMINS
3021038 CUMMINS
3603868rx CUMMINS
3603888rx CUMMINS
3l8205 CATERPILLAR
3t2780 CATERPILLAR
3t2785 CATERPILLAR
3t2787 CATERPILLAR
3t3778 CATERPILLAR
3t8947 CATERPILLAR
3t8949 CATERPILLAR
3t8954 CATERPILLAR
3t8967 CATERPILLAR
4081235 CUMMINS
4780974 FIAT
4780974 IVECO
4n0959 CATERPILLAR
4n3343 CATERPILLAR
4n3349 CATERPILLAR
5000811448 RENAULT
5l3648 CATERPILLAR
5l4405 CATERPILLAR
5l5353 CATERPILLAR
5l648 CATERPILLAR
5lg48 CATERPILLAR
6n9667 CATERPILLAR
6n9677 CATERPILLAR
6t0640 CATERPILLAR
6t0647 CATERPILLAR
6v0890 CATERPILLAR
8l8205 CATERPILLAR
