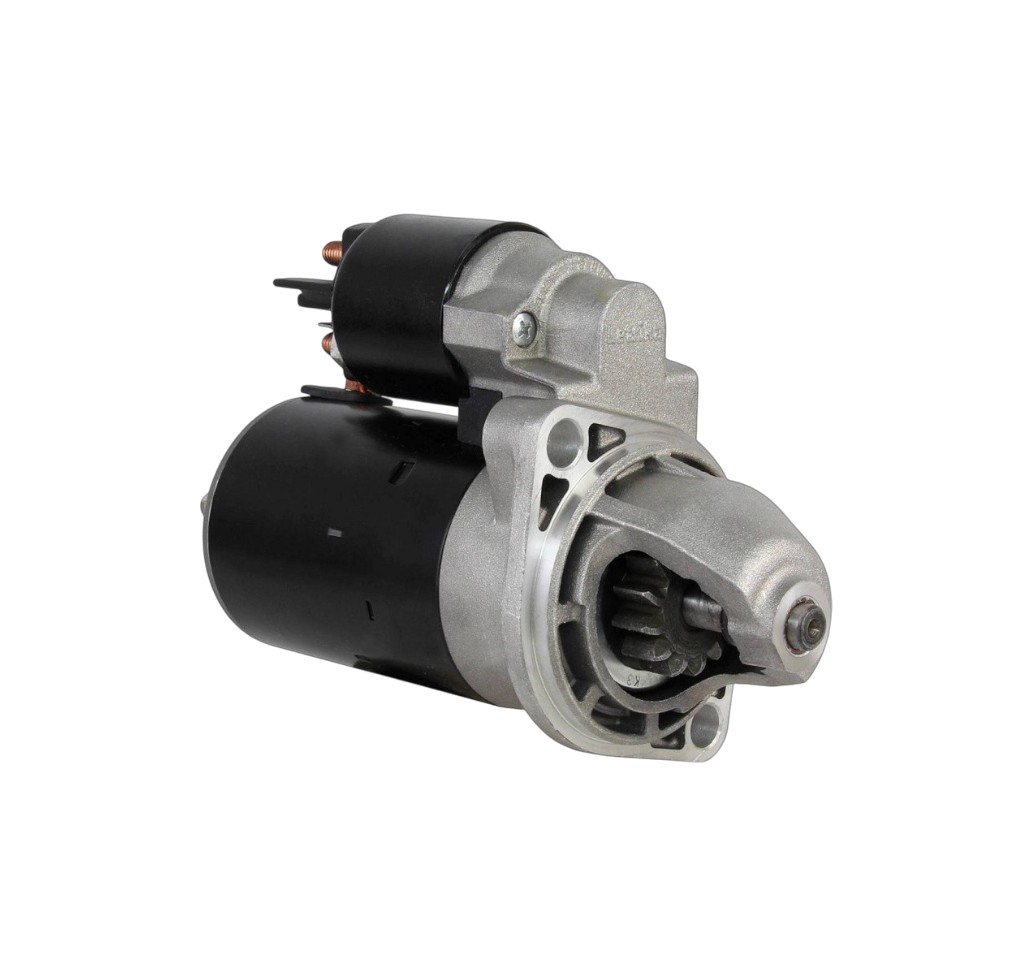

Starter Bukh DV10 DV20 DV24 (ME)

Bukh DV10 DV20 DV24 DV29 DV36 DV48 Unit has an opening in mirror image; mounted with solenoid facing downwards.

Attention: The original bolts are sometimes too short.

Replacement bolt set (link): Bolt set Bukh starter replacement.

Electrical specifications
Voltage: 12
kW: 1.1

Physical specifications
A Mounting flange: 82.00
B Drive distance: 21.00
H No. of teeth: 13
I B+: M8
N Gear type: Direct drive
O Distance: 104.00
P Rotation: Counter clockwise
R Total length: 215.00
Further information
No. of mounting holes: 2 (0)
Drive type: Steel
RemarksUnit has an opening in mirror image; must be mounted upside down.
Oil sealed: No
Waterproof: No

[expand title=”Replacing” rel=”fiction”]
Replacing:
0001314031 BOSCH Parts list
0001315004 BOSCH Parts list
61201650 BUKH
612A1650 BUKH
11.130.782 ISKRA Parts list
11.131.285 ISKRA
aze2160 ISKRA
AZF3566 ISKRA Parts list
d9e51 VALEO Parts list
[/expand]
