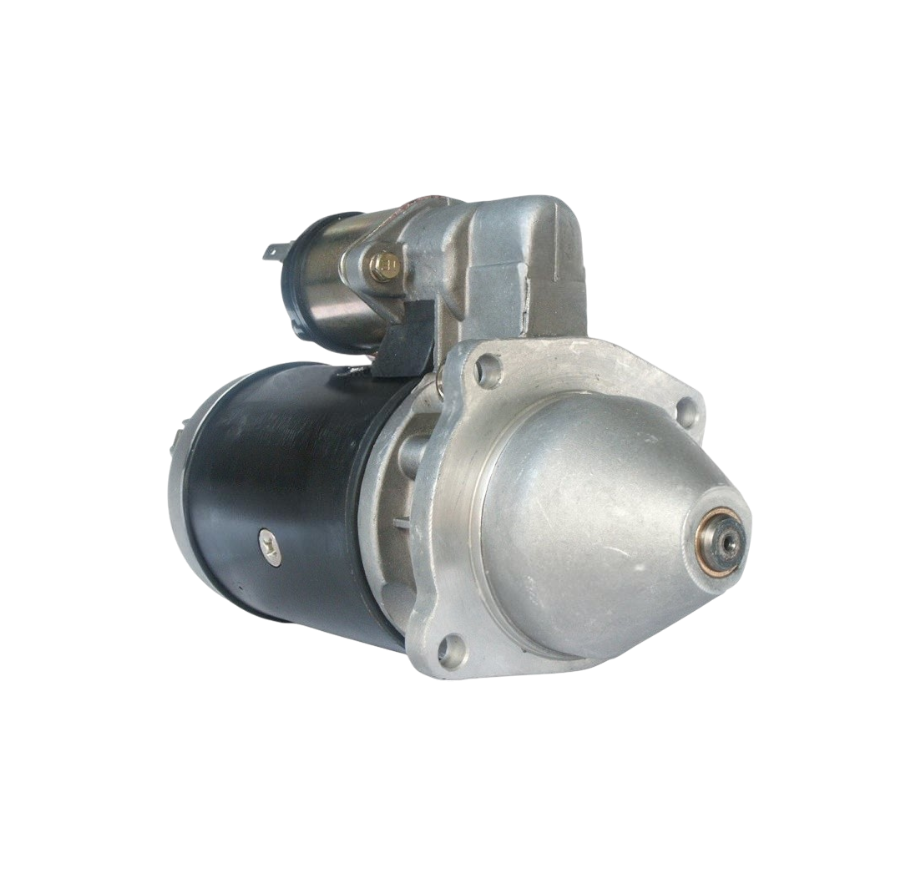

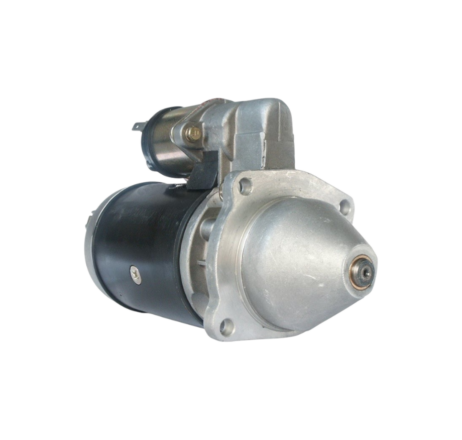

Starter Case 200 / 400 series

Original price was: €246,84.Current price is: €198,95.

Includes 21% Tax
Product ID: 27393

✓ 6 pieces shipped within 24 hours, if ordered on workdays before 15:30 (pick-up possible from the next workday if ordered before 15:30)

Warranty: 2 Years

Electrical specifications
Voltage: 12
kW: 2.1

Physical specifications
A Mounting flange: 89.00
B Drive distance: 19.50
H No. of teeth: 10
I B+: M8
N Gear type: Direct drive
O Distance: 126.50
O Distance 2: 90.50
O Distance 3: 90.50
P Rotation: Clockwise
R Total length: 309.00
Further information
No. of mounting holes: 3 (0)
Drive type: Steel
Oil sealed: No
Waterproof: No

Replacing

26193 LUCAS
26288 LUCAS
26288a LUCAS
26288e LUCAS
26288f LUCAS
26925188A LUCAS
26925188d LUCAS
27420 LUCAS
27420a LUCAS
27420b LUCAS
Servicing

Case, Agricultural
200 Series 1957 01 0 0 0 250
200 Series 1959 01 0 0 0 275
200 Series 1969 01 0 0 0 276
400 Series 1961 01 0 0 0 414
400 Series 1969 01 0 0 0 434
400 Series 1972 01 0 0 0 444

SKU: 110438 Categories: , ,

Product ID: 27393

Additional information

Voltage DC

12v
Amount of teeth

10
Fitting edge

89.00 mm
Spacing holes

126.50 mm, 90.50 mm
Bendix distance

19.50 mm
Gear diameter

39.90 mm
