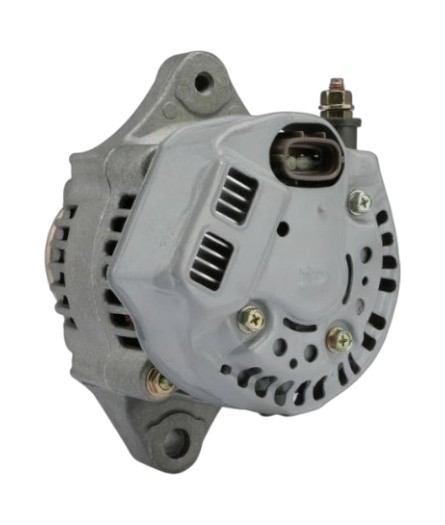

Alternator 12V Yanmar, 3TN, 4TN, 3TNV, 4TNV, Kubota, V2203, V2403, V2003, 12V

Electrical specifications (Alternator)
Voltage: 14
Amp: 40

Physical specifications (Alternator)
D Bracket hole: 10.25
G Belt adj. bracket hole: M8
B Width holder arm: 21.00
E Pos. belt adj. bracket hole: 60
H Diameter pulley: 69.60
A Pulley distance: 43.00
I Grooves/pulley: 1
J Radius: 74.00
J Radius: 74.00
K B+ position: M6
N Rotation: Clockwise
O Regulator plug: PL128
R Total length: 143.00
Further information (Alternator)
Blower: Internal fan
Pulley: V-Groove

101211-1170 DENSO
101211-1380 DENSO
129240-77200 YANMAR
129423-77200 YANMAR
am879909 JOHN DEERE
lva12357 JOHN DEERE
ty25243 JOHN DEERE

101211-1170
101211-3410
16404-64012
129423-77200
17490-64010
101211-1380
AM879908
17490-64011
17490-64014
101211-1030
17490-64012
47490-64015

Yanmar 4 TN E84
Yanmar STNV76-D 08-
Yanmar 3TNV88 08-
Yanmar 3TN-88
Yanmar 3TNV76-K 08-
4TNV88-XMX2 08-
Yanmar 4TNE84
3TNV70-KGD 08-
3TNV76-K 08-
3TNV82A 05-
Yanmar 3TNV88 05-
Yanmar 3TNV84T 05-
Yanmar 3TNE78A 98-01
Yanmar 3TNE82A 02-04
Yanmar 3TNE84 98-03Yanmar 3KNSA 08-
Yanmar 3TNV88-XRE2 08

KUBOTA Motor V2203
KUBOTA Motor V2403
Kubota V2003-TE47
Kubota V2003-EU1

JOHN DEERE 4210 Yanmar 28HP Diesel
JOHN DEERE 4310 Yanmar 32HP
JOHN DEERE 4410 Yanmar 35HP
JOHN DEERE 4510 Yanmar 39HP
JOHN DEERE 4610 Yanmar 44HP
JOHN DEERE 4710 Yanmar 48HP
JOHN DEERE 4700 Yanmar 48HP
JOHN DEERE 4200 Yanmar 26HP
JOHN DEERE 4300 Yanmar 32HP
JOHN DEERE 4400 Yanmar 35HP
JOHN DEERE 4500 Yanmar 39HP
JOHN DEERE 4600 Yanmar 43HP
JOHN DEERE 27D Yanmar 3TNV88
JOHN DEERE 110 TLB Yanmar 4TNE84
JOHN DEERE 110 TLB Yanmar 4TNV88
JOHN DEERE 3032E Yanmar 31.4HP
JOHN DEERE 3038E Yanmar 37.1HP
JOHN DEERE 3120 Yanmar 29.5HP
JOHN DEERE 3320 Yanmar 32.8HP
JOHN DEERE 3520 Yanmar 37.1HP
JOHN DEERE 3720 Yanmar 44HP
JOHN DEERE 4105 Yanmar 40.5HP
