Additional information
| Applicable to | Caterpillar, Cummins, Perkins |
|---|---|
| Voltage DC | 24v |
| Ampère | 55 A |
| Tachometer connection | W |
| Mounting ear width | 76.25 mm |
| Shaft diameter | 19.00 mm |
Sale!

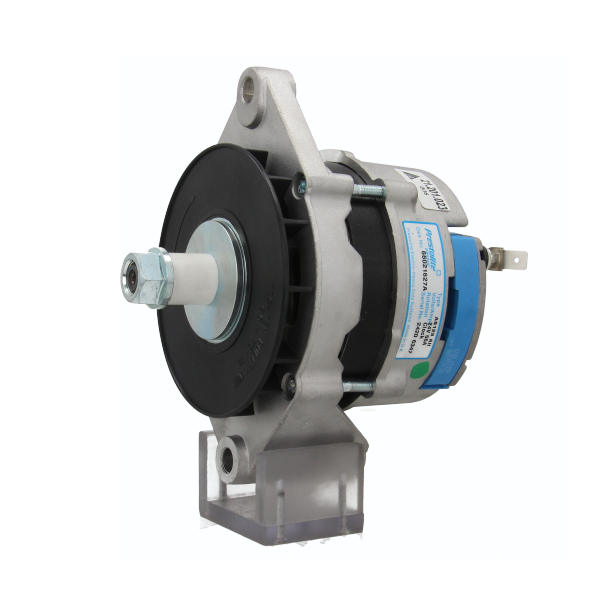

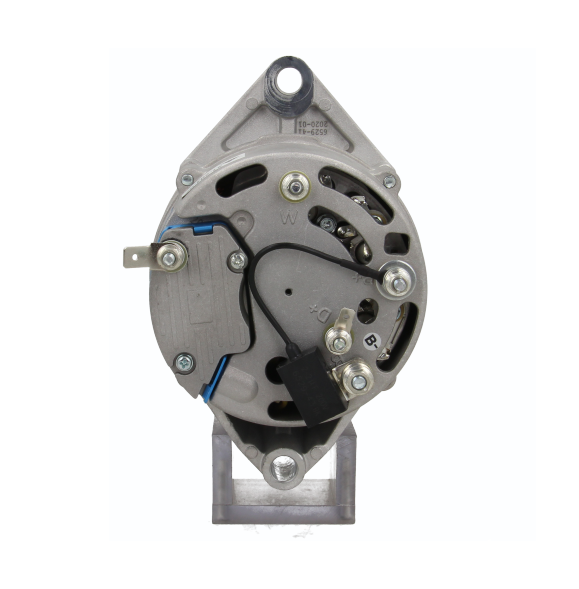

Alternator 24v 60Amp Perkins Cummins
Original price was: €679,95.€569,95Current price is: €569,95.
Includes 21% Tax
Product ID: 397918
✓ 1 in stock, shipped the next day, if ordered on workdays before 15:30 (pick-up possible from the next workday if ordered before 15:30)
Electrical specifications
Voltage: 28
Amp: 60
Earth free/double insulated: Yes
Terminal: W
Physical specifications
D Bracket hole: 11.30
G Belt adj. bracket hole: 10.30
B Width holder arm: 76.25
E Pos. belt adj. bracket hole: 60
J Radius: 89.65
J Radius 2: 94.65
K B+ position: M5
N Rotation: Clockwise
O Regulator plug: PL_NA
Q W plug type: M6
R Total length mm: 188.60
Replacing the following product numbers:
21201023 AES
3332215 Cummins
3634778 Cummins
4086686 Cummins
4101372 Cummins
66021496 Prestolite
66021617 Prestolite
66021617A Prestolite
66021627 Prestolite
66021627A Prestolite
706018060 PSH
859617 Prestolite
859617PB Cummins
LNA40247 Prestolite
Product ID: 397918
