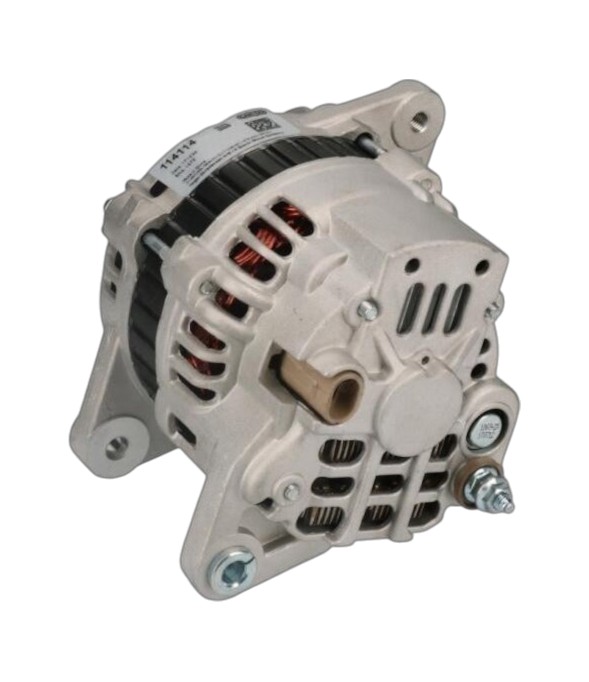

Alternator servicing 12V 65A Vetus M3.28 M3.29 STM7437

Electrical information
Voltage: 14
Amp: 65
Physical information

!! Please note that the plug of the old model may differ. At the bottom of the page you will find the connector.

!! Please note that the standard Vetus model has a W connection for a tachometer.
It has to be ordered separately, you can do this here: W-terminal

A Pulley distance: 42.00
B Width holder arm: 14.35
C Mounting bracket dist.: 66.00
D Bracket hole: 8.50
E Pos. belt adj. bracket hole: 60
G Belt adj. bracket hole: M8
H Diameter pulley: 68.80
I Grooves/pulley: 1
J Radius: 78.50
J Radius 2: 78.50
K B+: M6
K Position/B+ in min. 15
N Rotation: Clockwise
Q Plug no.1: PL77
R Total length mm: 166.50

219170 Delphi
219170 Daewoo
219170 Remy (delco)
219235 Valeo
219235 Remy (delco)
219235 Delphi
219251 Chevrolet
219251 Remy (delco)
219251 Daewoo
96289030 Daewoo
96289030 Chevrolet
96314258 Chevrolet
96314258 Daewoo
96380673 Daewoo
96380673 Delphi
96380673 Remy (delco)
96518124 Daewoo
96566261 Chevrolet
96566261 Daewoo
AB165104 Valeo
JA1600IR HC-PARTS
TA000A30601 Valeo
TA000A52202 Valeo
WAI 21431n
0986049051
AZA460
Vetus STM7437
