Oil pressure sensor M10x1 mm 0-10 bar and 0.5 bar switch

This sensor and switch operate through the ground connection. The circuit runs through the housing/thread via the electrical terminals.

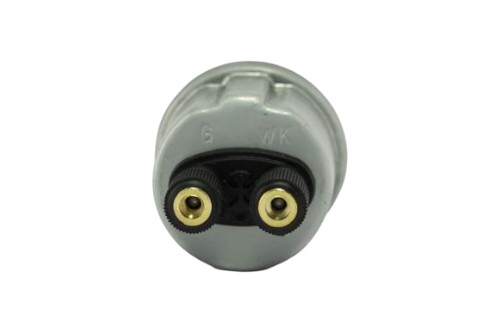

Terminal G = pressure gauge 10-184 ohm
Terminal WK = oil pressure warning light

Electrical specifications
Suitable for both 12 and 24 Volt systems

Physical specifications

External thread M10x1
Sensor range 10-184 ohm (0-10 bar)
Oil pressure switch 0.5 bar (warning light)

Oil pressure sender M10x1.0 0-10 bar 0.5 bar WK

Offers a range of high-quality oil pressure senders for accurate oil pressure measurement in various applications. These oil pressure senders are designed to provide reliable readings and are suitable for a wide range of engines and machinery. Their precision and durability help maintain optimum performance and protect your equipment.
