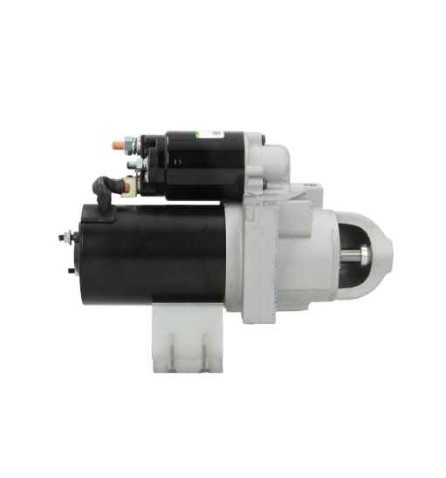

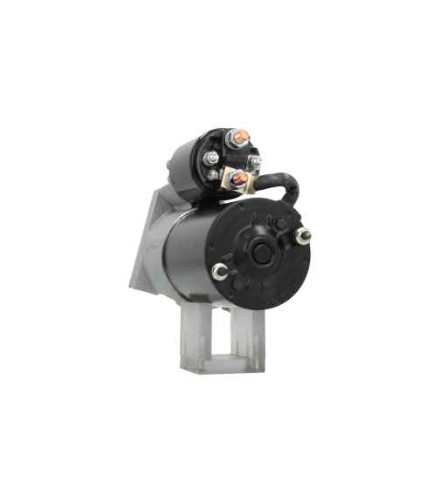

Startermotor Volvo Penta, Mercruiser V6 and V8 1.7kW SAE J1171 Marine Certified

Electrical specifications
Voltage: 12
kW: 1.7

SAE J1171 covers external ignition protection for all electrical devices that will be used in marine engine compartments and fuel tank spaces.

Mounting holes staggered; version with aligned holes: 112897

Physical specifications
A Mounting flange: 68.00
B Drive distance: 18.00
H No. of teeth: 9, 11
I B+: M8
J Terminal 15a: M5
N Gear type: Planetary
O Distance: 82.50
P Rotation: Clockwise
R Total length: 232.00
Further information
No. of mounting holes: 2 (0)
Drive type: Steel
Remarks: Replacing PG260f1,-G.
Oil sealed: No
Waterproof: No

Delco 8000108, Mando M59601,
Mercury Marine 50-807907,
Valeo TM000A24301

Clark (1997-2001) ** Daewoo (1996-2006) ** Mercruiser (1987-2008) ** OMC (1986-1996) ** Pleasurecraft (2001-2004) ** Volvo Penta (1989-2007)
