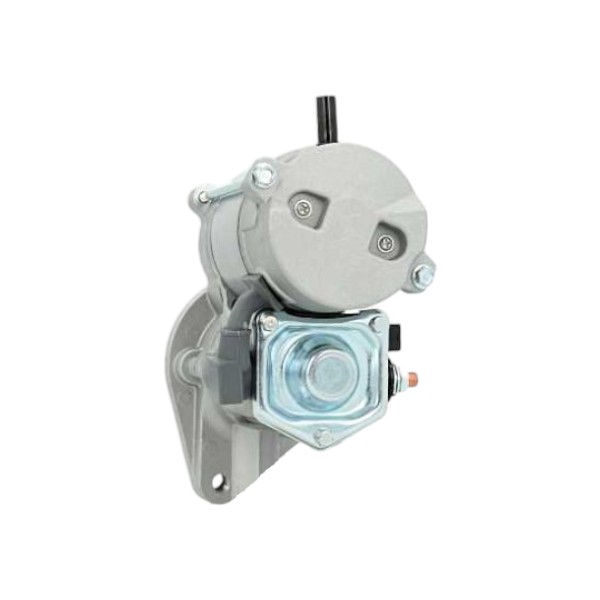

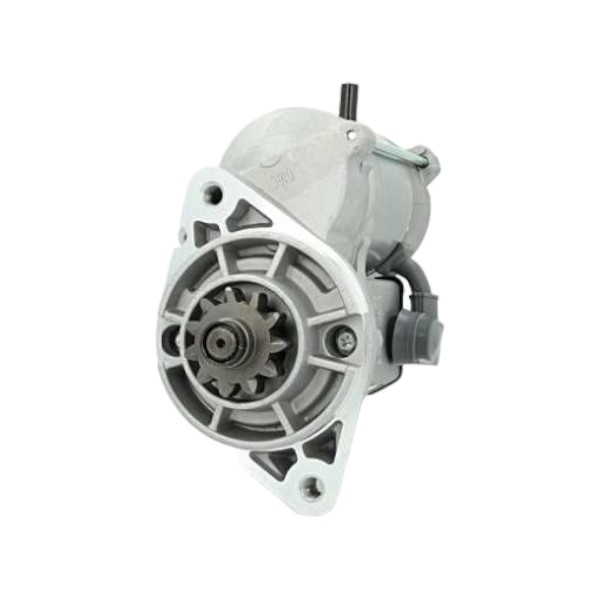

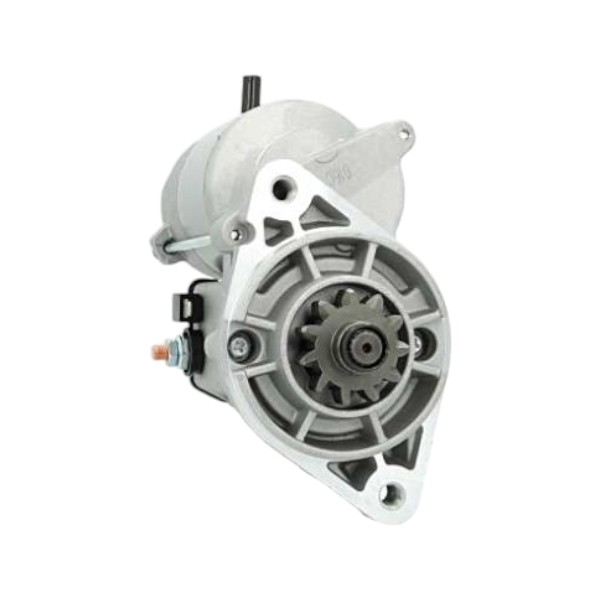

Starter Lister 12V

Electrical specifications
Voltage: 12
kW: 1.0

Physical specifications
A Mounting flange: 89.00
B Drive distance: 27.00
H No. of teeth: 9
I B+: M8
J Terminal 15a: 4.70
N Gear type: Direct drive
O1 Distance: 80.25
O2 Distance: 114.30
O3 Distance: 80.75
P Rotation: Counter clockwise
R Total length: 210.00
Further information
No. of mounting holes: 3 (0)
Clutch type: Wet
Drive type: Steel
Oil sealed: No
Waterproof: No
[expand title=”Replacing” rel=”fiction”] Replacing
11.131.100 ISKRA Parts list
aze1227 ISKRA
25219 LUCAS
26631 LUCAS Parts list
27018 LUCAS
66925191 LUCAS
63226631 MAGNETI MARELLI Parts list
[/expand]

[expand title=”Servicing ” rel=”fiction”] Lister, Marine [/expand]
