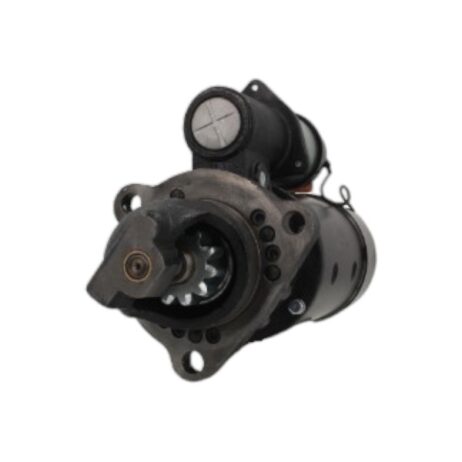

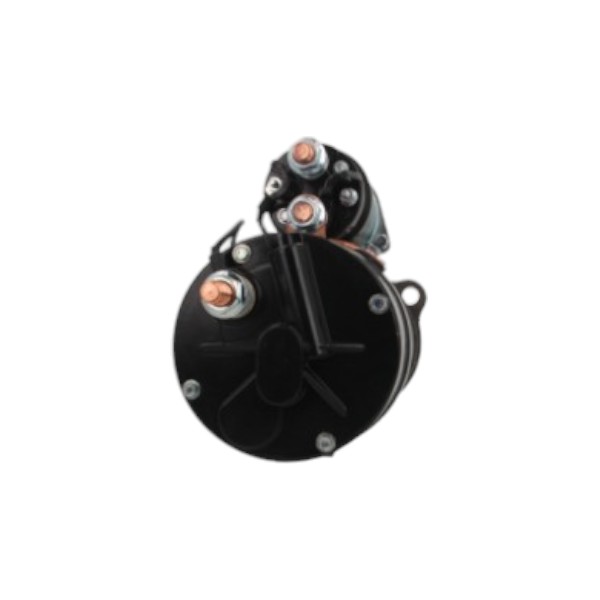

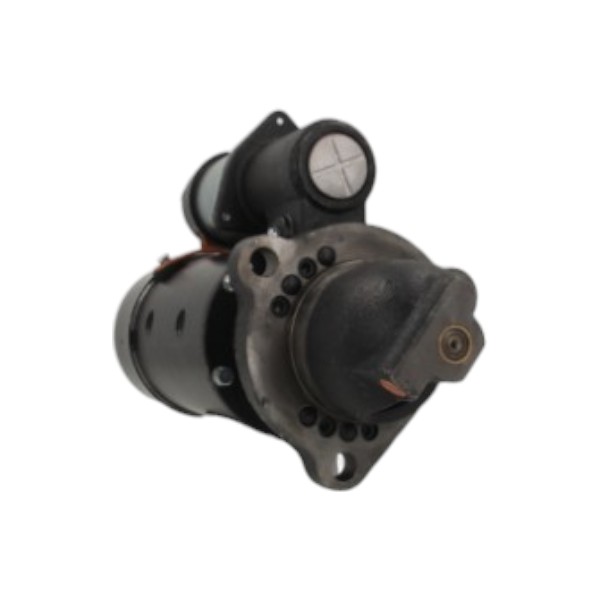

Starter 12V 7.5kW 42MT CW Ford, Cummins, Caterpillar

Electrical specifications
Volt 12
Insulation status Double insulated/isolated ground

Physical specifications
A Pilot diameter 92.00
B Bendix distance 46.00
H Number of teeth 11
I B+ 1/2″ UNC
N Reduction type Direct drive
O Distance 127.00
O Distance 2 127.00
O Distance 3 127.00
P Rotation direction Clockwise
R Overall length 500.00
S B- 1/2″ UNC
Additional information
Number of mounting holes 3 (0)
Clutch type Wet
Pinion type Steel
Remarks Replaces: 42MT.
Oil sealed Yes
Waterproof No

Replaces:
111039 CARGO
0r5347 CATERPILLAR
3e7863 CATERPILLAR
3t2879 CATERPILLAR
3t3154 CATERPILLAR
4l9547 CATERPILLAR
4n0956 CATERPILLAR
4n956 CATERPILLAR
5l4160 CATERPILLAR
5l4168 CATERPILLAR
5l4169 CATERPILLAR
5l5667 CATERPILLAR
5l5867 CATERPILLAR
8c3592 CATERPILLAR
8c3593 CATERPILLAR
8l8206 CATERPILLAR
9l6200 CATERPILLAR
9n0716 CATERPILLAR
9n0721 CATERPILLAR
9n716 CATERPILLAR
sl8206 CATERPILLAR
195827 CUMMINS
195828 CUMMINS
195829 CUMMINS
195830 CUMMINS
195833 CUMMINS
195834 CUMMINS
195835 CUMMINS
3603863rx CUMMINS
3610942 CUMMINS
128000-1340 DENSO
228000-1210 DENSO
228000-1211 DENSO
c5tz11002c FORD
c6tf11000a FORD
c6tf11000c FORD
c6tz11002e FORD
e6ht11001ca FORD
e6hz11002c FORD
e6hz11002d FORD
e8ht11001aa FORD
e8hz11002a FORD
e8hz11002ha FORD
sa768a FORD
10461033 REMY (DELCO)
10461038 REMY (DELCO)
10461042 REMY (DELCO)
10461045 REMY (DELCO)
10461052 REMY (DELCO)
10461053 REMY (DELCO)
10461067 REMY (DELCO)
10461075 REMY (DELCO)
10461076 REMY (DELCO)
10461077 REMY (DELCO)
10461114 REMY (DELCO)
10461126 REMY (DELCO)
10461127 REMY (DELCO)
1114131 REMY (DELCO)
1114799 REMY (DELCO)
1114928 REMY (DELCO)
1114937 REMY (DELCO)
1114941 REMY (DELCO)
1114946 REMY (DELCO)
1114961 REMY (DELCO)
1114971 REMY (DELCO)
1114978 REMY (DELCO)
1114983 REMY (DELCO)
1114984 REMY (DELCO)
1114985 REMY (DELCO)
1990224 REMY (DELCO)
1990306 REMY (DELCO)
1990323 REMY (DELCO)
323-871 REMY (DELCO)

Applied to:
Case, Agricultural machinery
Caterpillar, Industrial Engines 3406 3176
Cummins, Industrial Engines
Ford, US Trucks
Freightliner, US Trucks
International, US Trucks
Kenworth, US Trucks
Mack, US Trucks
New Holland, Agricultural machinery
Perkins, Industrial Engines
Volvo, US Trucks
