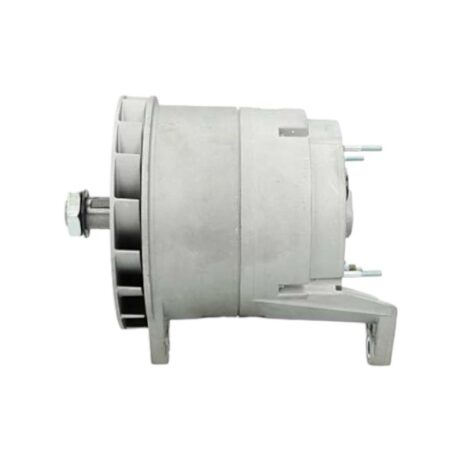

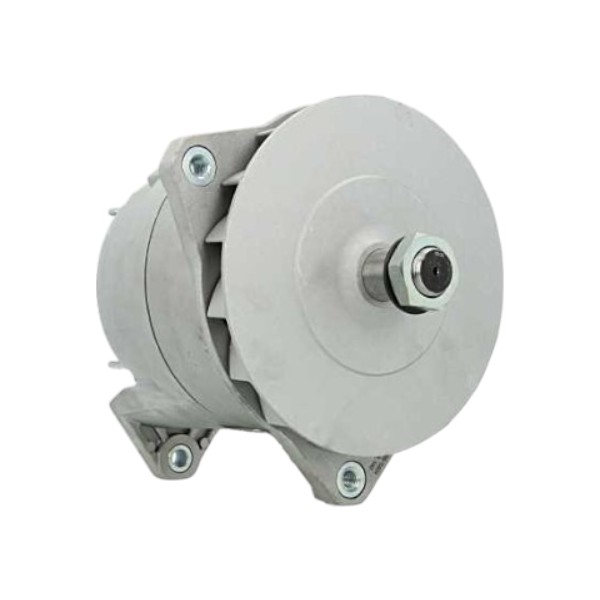

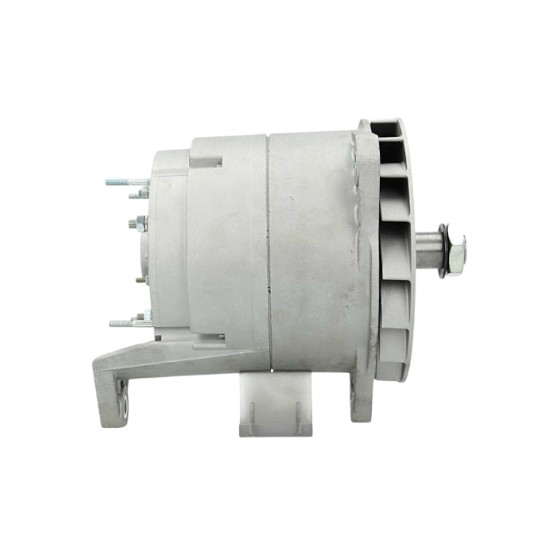

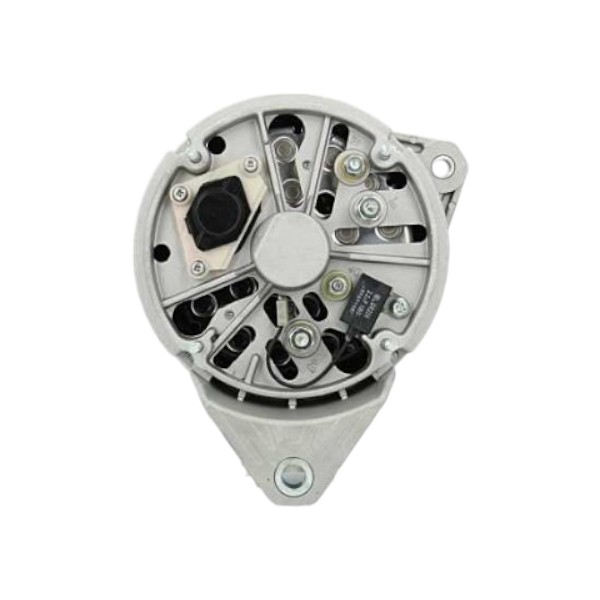

Volvo Penta D5, D7 series 24V 140A 20747520

€579,95

Includes 21% Tax
Product ID: 122386

✓ 2 pieces shipped within 24 hours, if ordered on workdays before 15:30 (pick-up possible from the next workday if ordered before 15:30)

Warranty: 2 Years

Electrical information
Voltage: 28
Amp: 140
Terminal: W
Volvo Penta alternator

Catalogue information
Pulley: Without
Regulator type: IR
Vacuum pump: No
Product info: New
Servicing Mercedes-Benz
Info: With bearing bushing in rear shield.
Remarks: B- M8. Shaft: 30.00 mm.

Physical information
B Width holder arm: 15.70
C Mounting bracket dist.: 182.00
D Bracket hole: M12-1.50
E Pos. belt adj. bracket hole: 50
G Belt adj. bracket hole M12-1.50
J Radius: 120.00
J Radius 2: 120.00
K B+: M8
K Position/B+ in min. 29
L D+: Size M5
N Rotation: CW/CCW
Q W terminal plug type: M6
R Total length mm: 302.00

SKU: 111833 Categories: , , Tag:

Product ID: 122386

Description

Servicing

D5A-B TA Alternator 28V 140A, Components
D5A-B TA Alternator, Low-Left Mounted 28V 140A
D5A-T Alternator 28V 140A, Components
D5A-T Alternator, Low-Left Mounted 28V 140A
D5A-TA Alternator 28V 140A, Components
D5A-TA Alternator, Low-Left Mounted 28V 140A
D7A-B TA Alternator, Low-Left Mounted 28V 140A
D7A-B TA Alternator 28V 140A, Components
D7A-T Alternator, Low-Left Mounted 28V 140A
D7A-T Alternator 28V 140A, Components
D7A-TA Alternator, Low-Left Mounted 28V 140A
D7A-TA Alternator 28V 140A, Components
D7C-B TA Alternator, Low-Left Mounted 28V 140A
D7C-B TA Alternator 28V 140A, Components
D7C-TA Alternator, Low-Left Mounted 28V 140A
D7C-TA Alternator 28V 140A, Components
MD2010 Alternator, Low-Left Mounted 28V 140A
MD2010 Alternator 28V 140A, Components
MD2010B Alternator, Low-Left Mounted 28V 140A
MD2010B Alternator 28V 140A, Components
MARINE DIESEL ENGINES GENSET
D5A-B TA Alternator, Low-Left Mounted 28V 140A
D5A-B TA Alternator 28V 140A, Components
D5A-T Alternator, Low-Left Mounted 28V 140A
D5A-T Alternator 28V 140A, Components
D5A-TA Alternator, Low-Left Mounted 28V 140A
D5A-TA Alternator 28V 140A, Components
D7A-B TA Alternator, Low-Left Mounted 28V 140A
D7A-B TA Alternator 28V 140A, Components
D7A-T Alternator, Low-Left Mounted 28V 140A
D7A-T Alternator 28V 140A, Components
D7A-TA Alternator, Low-Left Mounted 28V 140A
D7A-TA Alternator 28V 140A, Components

Additional information

Applicable to

Volvo Penta
Shaft diameter

30.00 mm
Voltage DC

24v
Ampère

140 A
Engine type

MD2010
Suspension distance

182.00 mm
Tachometer connection

W
Mounting ear width

15.70 mm
