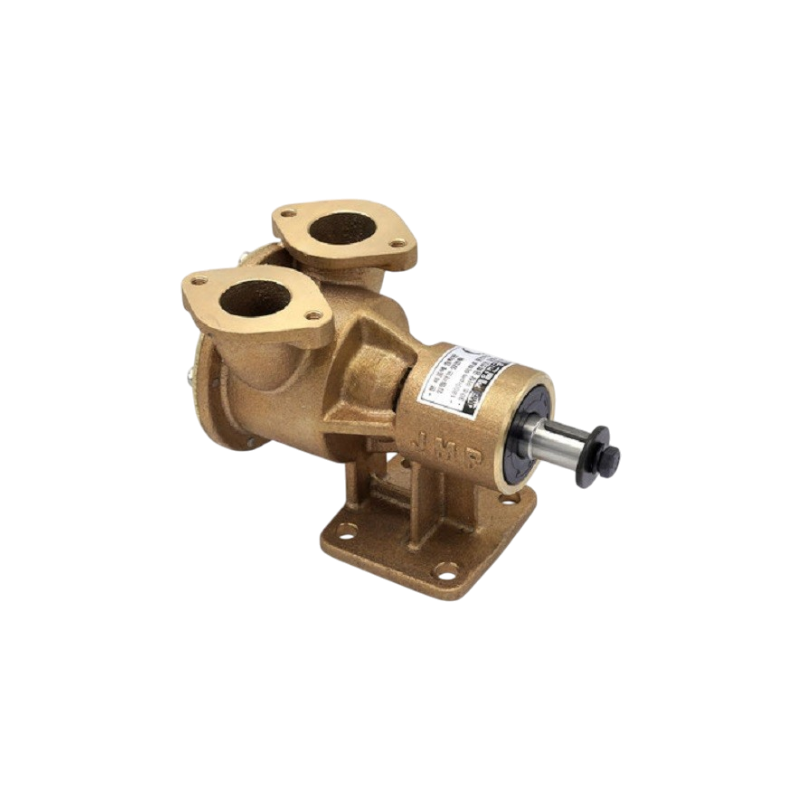

Impeller pump foot mounted universal 159 L/min

Original price was: €569,95.Current price is: €479,95.

Includes 21% Tax
Product ID: 70118

✓ 3 pieces shipped the same day, if ordered on working days before 15:30 (pick-up not possible)

Warranty: 2 Years

Suitable for use as a cooling water pump, deck wash pump, bilge pump or general service pump.
The pump housing is made of bronze. The pump is self-priming due to the rubber impeller.
The stainless steel shafts run in permanently lubricated bearings, making the JMP impeller pump particularly long-lasting.
The pump is suitable for both pleasure and professional shipping. Pump must not run dry or without liquid.

Product information and specifications:
Flange size: 2 “NPT
Connection: Flange
Pump housing: Bronze
JMP impeller p/n: 8200-01
Shaft material / diameter: Stainless steel / 18 mm
Shaft seal: Mechanical seal
Flow (1800 rpm): 394 l/min
Dimensions (L x W x H): 290 mm x 160mm x 160 mm
Weight (approx.): 25.00 lbs (11.36 kg)

Product features:
Strong bronze body
Mechanical seal with long operational life
High end performances and flexible impeller with long operational life
Designed with easy replacement of spare parts
O-ring seals at end cover (impeller cover) instead of a gasket

Impeller Pulley 180.00 mm

Product ID: 70118

Description

Impeller pump foot mounted universal 159 L/min Suitable for use as a cooling water pump, deck wash pump, bilge pump or general service pump.

Product information and specifications:
1 1/4″
Connection type: Flange
Impeller: 7524-01 (replacing 7502-01)
Flow: 1800 tpm): 159 litres/min
Dimensions (L x W x H): 185 mm x 145 mm x 135 mm (209)
Weight (approx.): 5.40 kg
Minor Service Kit sold separately): JSK0004

Product features:
Thick-walled cast pump housing made of seawater-resistant bronze
Mechanical seal with long operational life
High end performances and flexible impeller with long operational life
Shaft of high-quality stainless steel (3X series non-magnetic)
High end performances and flexible impeller with long operational life
Designed with easy replacement of spare parts
O-ring seals at end cover (impeller cover) instead of a gasket

Applications:
Maritime sector
Sea and wastewater treatment
Industrial (e.g. Cleaning Solutions, Bottling Systems)
Agriculture / farming
Public utilities and municipalities
