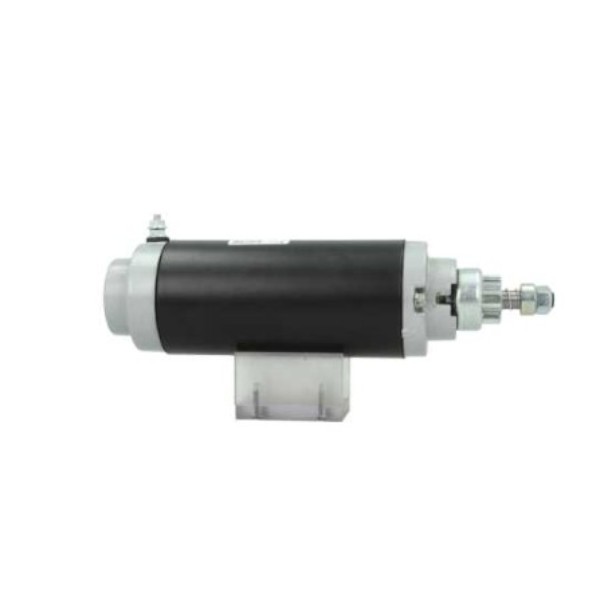

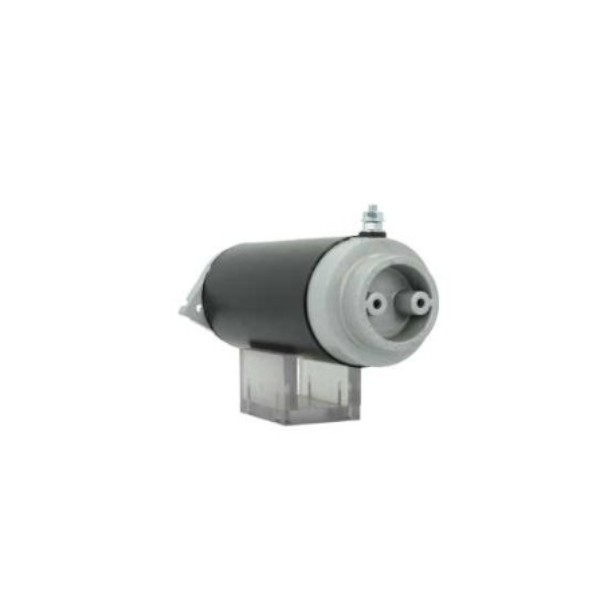

Startermotor Mercury, Mariner 80-90 hp

Electrical specifications
Volt 12
kW 0.7

Pinion diameter 32.00 mm
10 teeth

Physical specifications
A Pilot diameter 54.80
B Bendix distance 48.00
H Number of teeth 10
I B+ 1/4″ UNC
N Reduction type Direct drive
P Rotation direction Counterclockwise
R Overall length 263.00
Additional information
Number of mounting holes 1 (0)
Pinion type Bronze
Oil sealed No
Waterproof No

Replaces:
5375 ARCO MARINE
5392 ARCO MARINE
50-57485 MERCURY MARINE
50-60315 MERCURY MARINE
50-65436 MERCURY MARINE
50-66015 MERCURY MARINE
50-66015-2 MERCURY MARINE
50-66015-3 MERCURY MARINE
50-66015t MERCURY MARINE
50-66015t-1 MERCURY MARINE
50-88119 MERCURY MARINE
50-893891 MERCURY MARINE
mgd4108 PRESTOLITE
mgd4108a PRESTOLITE
mgl4001b PRESTOLITE
20513503TB PRESTOLITE
4820123mo30sm UNITED TECHNOLOGIES
4886540mo30sm UNITED TECHNOLOGIES
sm01446 UNITED TECHNOLOGIES
sm09962 UNITED TECHNOLOGIES
sm09964 UNITED TECHNOLOGIES
sm48201 UNITED TECHNOLOGIES
sm48865 UNITED TECHNOLOGIES
smh12c31 UNITED TECHNOLOGIES
SM48386 UNITED TECHNOLOGIES
0996440-M030SM UNITED TECHNOLOGIES
0996440MO30SM UNITED TECHNOLOGIES
4820140-M030SM UNITED TECHNOLOGIES
4820140MO30SM UNITED TECHNOLOGIES
4838640-M030SM UNITED TECHNOLOGIES
Johnson Evinrude 4820140

Original Reference Number 0996440, 4820140, A, MGD4108, MGD4108A, POC4003

Suitable for:
Mercury, 80-90 HP, Jet 65 HP
