VETUS joystick interface for BOW PRO/RIMDRIVE – CANVXCJP

Description

VETUS joystick interface for BOW PRO/RIMDRIVE – CANVXCJP

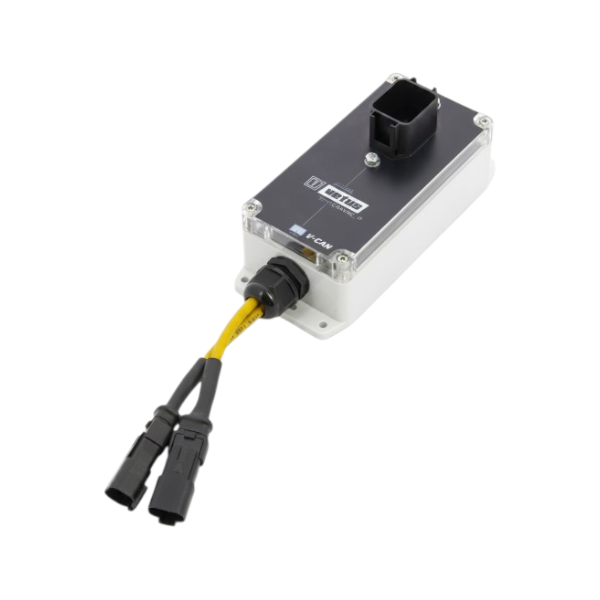

The VETUS CANVXCJP is an interface for connecting a separate proportional VETUS joystick to the digital V-CAN network. The module forms the connection between the joystick control and a VETUS BOW PRO or RIMDRIVE system and enables proportional thrust control.

The interface is intended, among other applications, for use with the frameless VETUS DBPPJX joystick. This makes it possible to integrate a separate joystick into a custom dashboard, armrest or other helm station solution without using a complete standard control panel.

The CANVXCJP processes the signal from the connected joystick and converts it for communication via the V-CAN network. This allows the required thrust to be adjusted continuously instead of only fully on or off. This provides greater control during precise manoeuvres with a BOW PRO or RIMDRIVE bow or stern thruster.

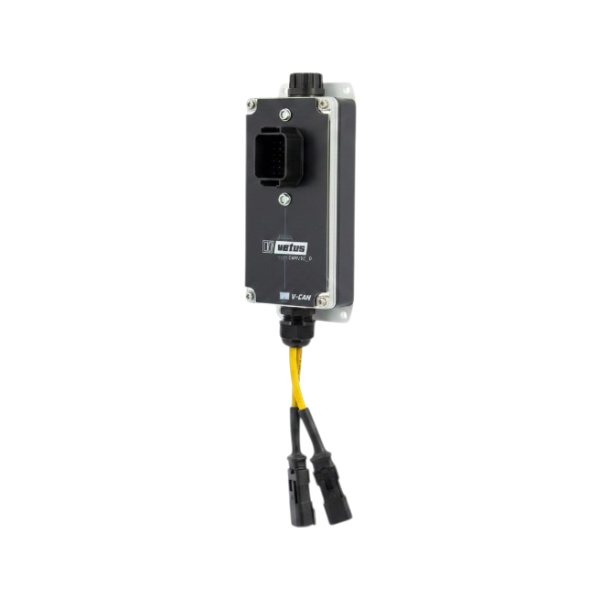

The module is equipped with V-CAN connections and wiring for integration into the existing system. The proportional joystick itself is not included and must be purchased separately.

Key features and benefits

• Joystick interface: Connects a separate proportional VETUS joystick to the V-CAN network.
• Proportional control: Enables continuous adjustment of thrust.
• For BOW PRO and RIMDRIVE: Designed for use within these VETUS systems.
• For DBPPJX: Intended, among other applications, for connecting the frameless DBPPJX joystick.
• V-CAN communication: Converts the joystick signal for digital communication within the VETUS network.
• Flexible installation: Enables the use of a separate joystick in a custom dashboard or helm station design.
• Plug-and-play connections: For integration into the existing V-CAN infrastructure.
• Joystick not included: This item consists of the interface box with associated connections and wiring.

Specifications

• Part number: CANVXCJP
• Product type: Proportional joystick interface
• Network: V-CAN
• System: BOW PRO and RIMDRIVE
• Suitable for joystick: DBPPJX, among others
• Control: Proportional
• Joystick included: No
