VETUS time delay switch 24V for BPSM/BPJSTA – BPTD24

Description

VETUS time delay switch 24V for BPSM/BPJSTA – BPTD24

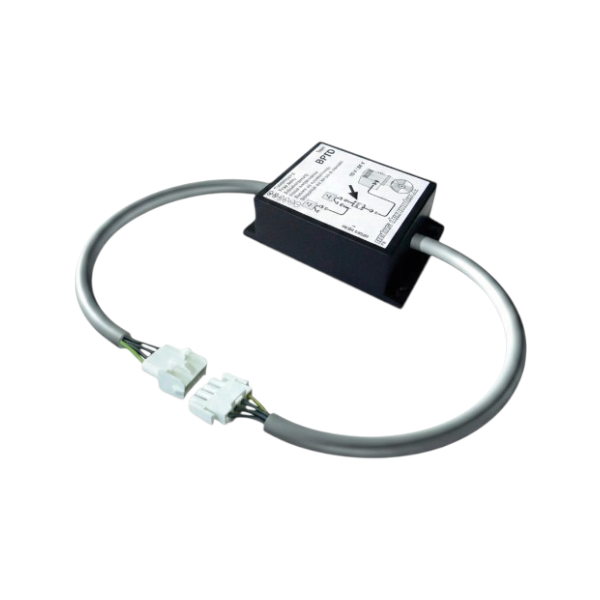

The VETUS BPTD24 is an electronic time delay switch for 24V bow thruster installations with VETUS BPSM or BPJSTA controls. The module prevents the direction of the bow thruster from being switched too quickly from port to starboard or vice versa.

On a bow thruster without time delay, immediate reversing can cause the motor to be driven in the opposite direction while the propeller is still rotating. This creates a high electrical and mechanical load. When the control direction is reversed, the BPTD24 introduces a delay so that the bow thruster can slow down before the opposite direction is engaged.

This protection is particularly practical for rental boats and other vessels operated by different users. The time delay module helps prevent damage caused by switching back and forth too quickly, without the user having to take this into account during manoeuvring.

The BPTD24 is intended for 24V systems and can be used in combination with VETUS controls such as the BPSM and BPJSTA that do not have an integrated time delay function. The module is equipped with plug connections for integration into the existing control wiring.

Key features and benefits

• 24V version: Designed for VETUS bow thruster installations with a 24V control voltage system.
• Time delay: Prevents immediate switching between port and starboard.
• Protection of motor and drive: Reduces heavy electrical and mechanical loads caused by rapid reversing.
• For BPSM and BPJSTA: Suitable for these VETUS controls without integrated time delay.
• Suitable for rental boats: Helps prevent damage caused by abrupt or inexperienced operation.
• Compact electronic module: Can be easily integrated into the existing installation.
• Plug connections: Designed for connection to the VETUS control wiring.

Specifications

• Part number: BPTD24
• Product type: Time delay switch
• Voltage: 24V DC
• Function: Delay when reversing direction of rotation
• Suitable for: VETUS BPSM and BPJSTA
• Application: Bow and stern thruster control
