VETUS V-CAN interface for external push buttons – CANVXCSP

Description

VETUS V-CAN interface for external push buttons – CANVXCSP

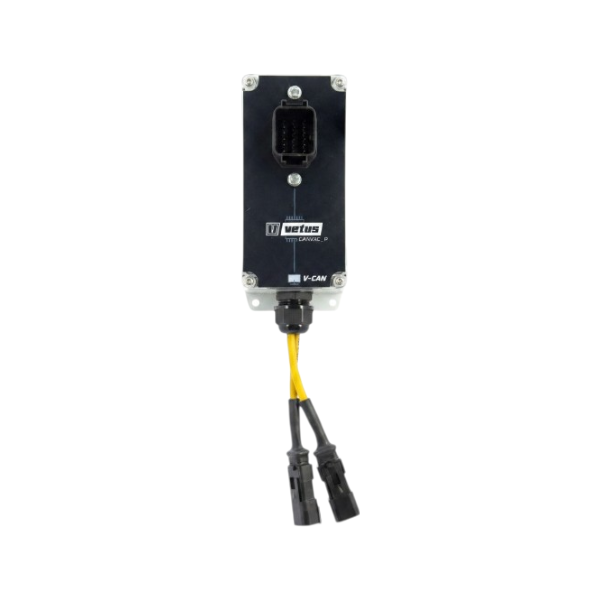

The VETUS CANVXCSP is a digital interface for connecting external push buttons to the VETUS V-CAN network. The module makes it possible to operate a VETUS BOW PRO bow or stern thruster using separate switches instead of a complete standard control panel.

The CANVXCSP processes the signals from the connected external push buttons and converts them into digital V-CAN commands. Operation via this interface is non-proportional: when a push button is operated, the bow or stern thruster is driven at maximum thrust.

The interface is intended for normally open, momentary push buttons and offers flexibility when creating a custom helm station. For example, separate buttons can be integrated into a dashboard or another control position. According to the supplied information, a maximum of four control positions can be used.

The module is integrated into the V-CAN network and is equipped with connections and wiring for integration into the installation. A correctly configured and protected V-CAN system is required for proper operation.

Key features and benefits

• V-CAN interface: Converts signals from external push buttons into digital V-CAN commands.
• For BOW PRO: Suitable for operating a VETUS BOW PRO bow or stern thruster.
• External push buttons: Enables a custom dashboard or helm station solution.
• On/off control: The connected push buttons operate the thruster at maximum thrust.
• Normally open switches: Designed for use with momentary NO push buttons.
• Multiple control positions: Supports up to 4 helm stations according to the supplied information.
• V-CAN connection: For integration into the digital VETUS network.
• Compact module: Can be installed out of sight behind the dashboard or in another suitable mounting position.

Specifications

• Part number: CANVXCSP
• Product type: Thruster interface for external push buttons
• Network: V-CAN
• System: BOW PRO
• Control type: External push buttons
• Proportional control via push buttons: No
• Control: On/off at maximum thrust
• Switch type: Normally open, momentary
• Number of control positions: Maximum 4 according to the supplied information
